Piston Air Compressor, Size 3/8", 1725 RPM MPN:8HDM-10-M853
Piston Air Compressor, Size 3/8", 1725 RPM

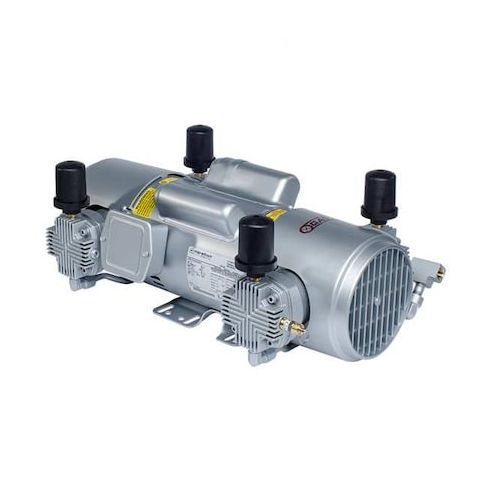

The Gast 8HDM-10-M853 is an oil-free, four-cylinder piston air compressor with a reciprocating design. It operates on 220 to 240V/380 to 440V AC, 230/460V AC single-phase power at 50 Hz, 60 Hz at a rated 2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 9.1 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 7.15 A, and a measured sound level of 76 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder and stainless steel valves. Enclosure type is clean dust free. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 21.579 x 12.359 x 8.35 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 21.00
- Package Height: 15.00
- Package Weight: 15.00
Product info last updated on February 18, 2026 6:11am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
