Piston Air Compressor, Size 1/4", 1725 RPM MPN:1LAA-46S-M100GX
Piston Air Compressor, Size 1/4", 1725 RPM

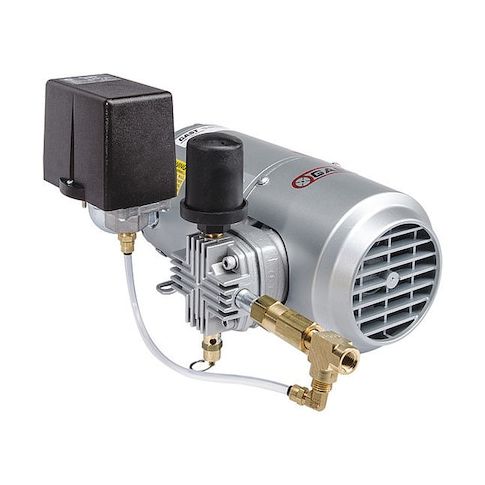

This 1LAA-46S-M100Gx piston pump from Gast is a compact, oilless air compressor ideal for applications requiring low to moderate air flow. With a maximum continuous pressure of 50 psi and a free air flow rate of 1.51 cfm, it's suitable for powering small tools, pneumatic systems, and laboratory equipment. Its compact design and single-phase operation make it easy to integrate into existing systems, while its oilless design reduces maintenance and downtime. Suitable for use in a variety of industries, including laboratory, medical, and manufacturing, this pump offers reliable performance and efficient operation.
Top product features:
- This product is a lubrication type oilless piston air compressor.
- It has a single cylinder design.
- It operates at a maximum speed of 1,725 RPM.
Top product applications:
- Air Tool Applications
- Oilless Piston Pump is ideal for use with air tools requiring high pressure and high flow rates, such as impact wrenches and sanders.
- Pneumatic Testing Equipment
The Gast 1LAA-46S-M100GX is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/6 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.51 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM, a full-load current of 4.45 A, and a measured sound level of 76 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 14.90
- Package Height: 12.10
- Package Weight: 26.15
Product info last updated on February 24, 2026 9:31am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
