Piston Air Compressor, 1HP, 115/230V, 1Ph MPN:6HCA-12-M616NEX
Piston Air Compressor, 1HP, 115/230V, 1Ph
This 1HP piston air compressor from Gast is designed for a variety of applications, including industrial, commercial, and DIY projects. With a maximum continuous pressure of 100 psi and free air flow rate of 5.35 cfm, it provides a reliable source of compressed air for powering tools, machinery, and equipment. The oil-free design ensures minimal maintenance and reduced risk of contamination, making it ideal for applications where cleanliness is crucial. Suitable for use in garages, workshops, and manufacturing facilities, this compressor is a versatile and efficient solution for a range of tasks and projects.
Top product features:
- Lubrication Type Oil Free
- Maximum Continuous Pressure 100 psi
- Free Air Flow Rate 5.35 cfm
Top product applications:
- Paint Spray Guns
- Automotive Repair Shops
- Industrial Cleaning

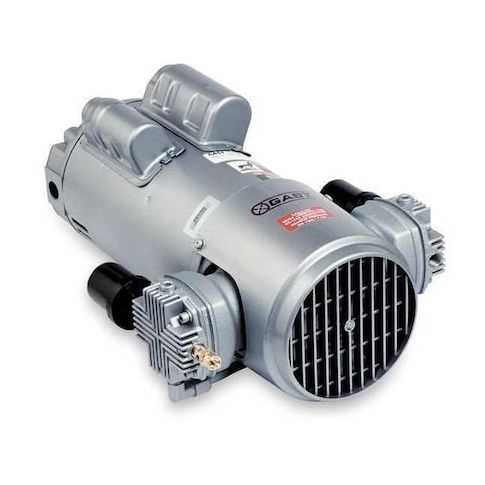

The Gast 6HCA-12-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 3.2 CFM at 100 psi up to 5.35 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 14.8/7.4 A, and a measured sound level of 63 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a shaded-pole motor, and corrosion resistant sandwich valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.625 x 12.25 x 8.937 in (L x W x H). Duty cycle: continuous. The manufacturer lists typical applications including aeration, beverage dispensing, business machines, packaging, and photographic processing.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.50
- Package Width: 16.50
- Package Height: 13.30
- Package Weight: 57.50
Product info last updated on February 8, 2026 10:17am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
