Piston Air Compressor/Vacuum Pump, 3/4HP MPN:5LCA-251-M550NGX
Piston Air Compressor/Vacuum Pump, 3/4HP
This 3/4HP Piston Air Compressor/Vacuum Pump from Gast is a versatile and reliable solution for various applications. Suitable for use in laboratories, workshops, and industrial settings, it provides a maximum continuous pressure of 50 psi and a maximum intermittent pressure of 50 psi. The pump also features a maximum vacuum of 27.5 in Hg, making it ideal for applications requiring both compression and vacuum capabilities. With a free air flow rate of 5.85 cfm and a maximum speed of 1,725 RPM, it efficiently handles air flow and pressure demands. Its oil-free design and compact size make it a convenient and space-saving option.
Top product features:
- Lubrication type is oil-free
- Has 2 cylinders
- Maximum continuous pressure is 50 psi
Top product applications:
- Medical Equipment Repair
- Laboratory Vacuum Systems
- Industrial Process Control

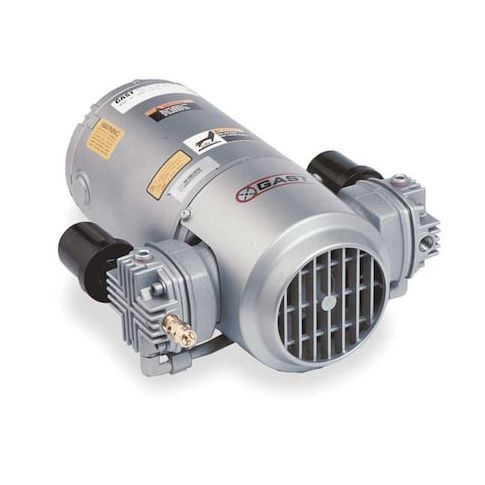

The Gast 5LCA-251-M550NGX is an oil-free, twin-cylinder piston air compressor/vacuum pump with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 4 CFM at 50 psi up to 5.85 CFM at 0 psi, a maximum continuous pressure of 50 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 16/8 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 14.5 x 12.25 x 8.875 in (L x W x H).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.80
- Package Width: 14.70
- Package Height: 11.90
- Package Weight: 43.00
Product info last updated on January 31, 2026 10:26am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
