Piston Air Compressor, Size 1/4", 1725 RPM MPN:4HCC-10-M450X
Piston Air Compressor, Size 1/4", 1725 RPM

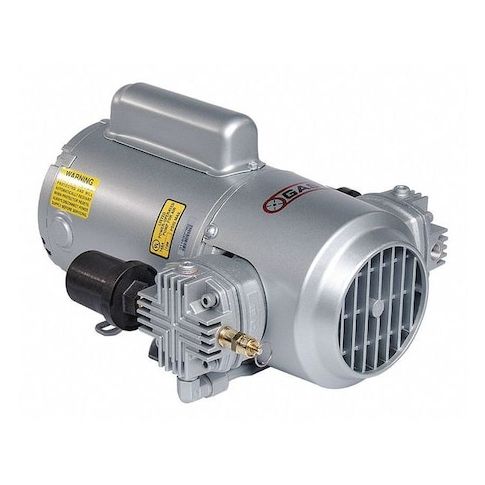

The Gast Standard 4Hcc-10-M450X Piston Pump is a reliable and efficient air compressor designed for various applications. Suitable for use in laboratories, medical facilities, and industrial settings, this oilless pump provides a maximum continuous pressure of 100 psi and a free air flow rate of 3.52 cfm. Its compact design and quiet operation make it ideal for applications where space and noise are concerns. With a maximum speed of 1,725 RPM and a 0.5 hp output power, this pump is capable of meeting the demands of a range of tasks, from general air supply to specific industrial processes.
Top product features:
- Piston Air Compressor design allows for oilless lubrication
- Has 2 cylinders for increased airflow and power
- Capable of producing 100 psi maximum continuous pressure
Top product applications:
- Medical Equipment: The Gast Standard 4Hcc-10-M450X Piston Pump can be used to power medical devices such as ventilators, nebulizers, and oxygen concentrators.
- Industrial Power Tools: This pump can be used to power pneumatic tools such as impact wrenches, drills, and sanders in various industrial settings.
- Laboratory Equipment: The Gast Standard 4Hcc-10-M450X Piston Pump can be used to power laboratory equipment such as air compressors for pneumatic sampling devices, and pneumatic actuators for various laboratory instruments.
The Gast 4HCC-10-M450X is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 3.52 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, and a measured sound level of 74 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 14.33 x 11.968 x 8.582 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.80
- Package Width: 14.70
- Package Height: 12.20
- Package Weight: 36.30
Product info last updated on February 10, 2026 7:10am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
