Piston Air Compressor, Size 1/4", 1725 RPM MPN:6HCA-10-M616NEX
Piston Air Compressor, Size 1/4", 1725 RPM
The 6Hca-10-M616Nex Piston Pump from Gast is a reliable and efficient solution for various industrial applications. This single-phase, oilless piston air compressor is ideal for use in laboratories, medical facilities, and other settings where oil-free air is required. With a maximum continuous pressure of 100 psi and a free air flow rate of 5.35 cfm, this compressor delivers consistent performance and reliable air supply. Its compact design and quiet operation make it suitable for use in noise-sensitive environments, while its robust construction ensures long-lasting durability. Perfect for applications such as pneumatic tools, medical equipment, and laboratory instruments.
Top product features:
- Piston Air Compressor
- Lubrication Type Oilless
- Maximum Continuous Pressure 100 psi
Top product applications:
- Air Power Tool
- Automotive Air Compressor
- Medical Equipment

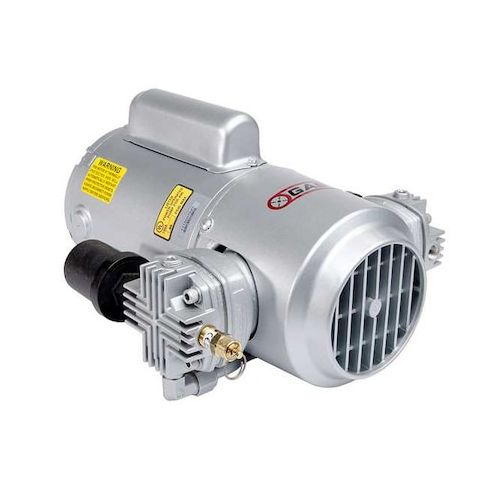

The Gast 6HCA-10-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 5.35 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 8.7 A, and a measured sound level of 81 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 15.68 x 12.29 x 8.42 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 12.00
- Package Weight: 58.50
Product info last updated on February 13, 2026 10:34am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
