Piston Air Compressor, Size 1/4", 1725 RPM MPN:5HCD-10-M550NGX
Piston Air Compressor, Size 1/4", 1725 RPM

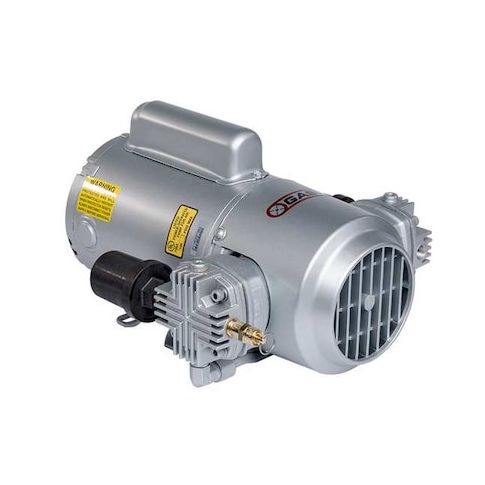

The Gast 5HCD-10-M550NGX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/208 to 230V AC single-phase power at 50 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 4.7 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, and a measured sound level of 75 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.40
- Package Width: 14.60
- Package Height: 12.30
- Package Weight: 42.35
Product info last updated on March 4, 2026 8:12pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
