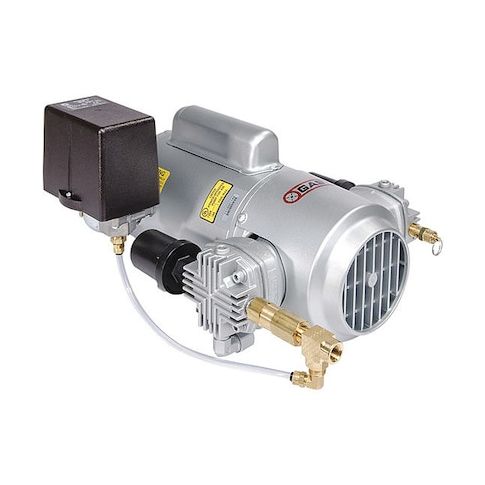

Piston Air Compressor, Size 1/4", 1725 RPM MPN:6LCF-46S-M616NEX
Piston Air Compressor, Size 1/4", 1725 RPM
The 6Lcf-46S-M616Nex Piston Pump from Gast is a reliable and efficient air compressor solution for a variety of applications. Ideal for use in laboratories, medical facilities, and industrial settings, this oilless compressor provides consistent performance and minimal maintenance. With a maximum continuous pressure of 50 psi and a free air flow rate of 6.3 cfm, it's perfect for powering pneumatic tools, medical equipment, and other devices. Its compact design and quiet operation make it a great choice for noise-sensitive environments, while its durable construction ensures long-lasting performance. Upgrade to the Gast 6Lcf-46S-M616Nex for reliable and efficient air compression.
Top product features:
- 2-cylinder design
- Lubrication type: oilless
- Maximum continuous pressure: 50 psi
Top product applications:
- Air Tool Applications
- Industrial Air Compressor for manufacturing and assembly operations
- Pneumatic Tool Power Unit for construction and maintenance equipment
The Gast 6LCF-46S-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/208 to 230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 6.3 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM, a full-load current of 6.27 A, and a measured sound level of 81 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 18.92 x 13.25 x 8.62 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 12.00
- Package Weight: 15.00
Product info last updated on January 19, 2026 10:41pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
