Piston Air Compressor, Size 1/4", 1725 RPM MPN:1VAF-10-M100X
Piston Air Compressor, Size 1/4", 1725 RPM
The Gast Standard 1Vaf-10-M100X Piston Pump is a reliable and efficient air compressor designed for various applications. This oilless piston pump provides consistent power output of 0.166 hp, making it suitable for tasks that require moderate air flow rates of up to 1.8 cfm. With a maximum vacuum of 27.5 in Hg and a maximum speed of 1,725 RPM, this pump is ideal for use in laboratories, manufacturing facilities, and other industrial settings where precise air control is essential. Its compact design and ease of installation make it a valuable addition to any air-powered system.
Top product features:
- Lubrication type is oilless
- Piston design provides a compact and efficient air compression mechanism
- Maximum vacuum of 27.5 in Hg allows for effective air compression and removal of air from systems
Top product applications:
- Air Tool for Automotive Repair
- Pneumatic Power Tool for Industrial Manufacturing
- Medical Equipment Air Supply System

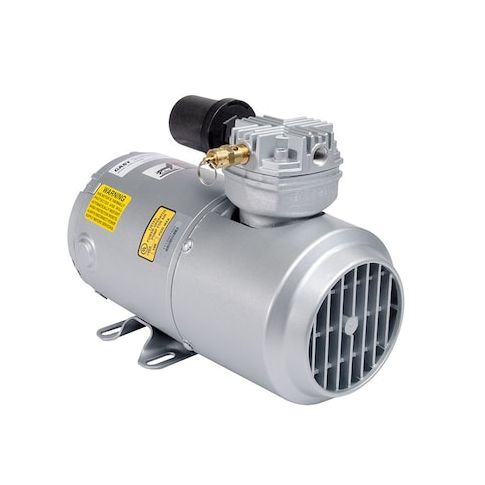

The Gast 1VAF-10-M100X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/6 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.8 cfm, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 4.45 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 11.53 x 5.62 x 8.61 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.10
- Package Width: 11.70
- Package Height: 12.40
- Package Weight: 21.95
