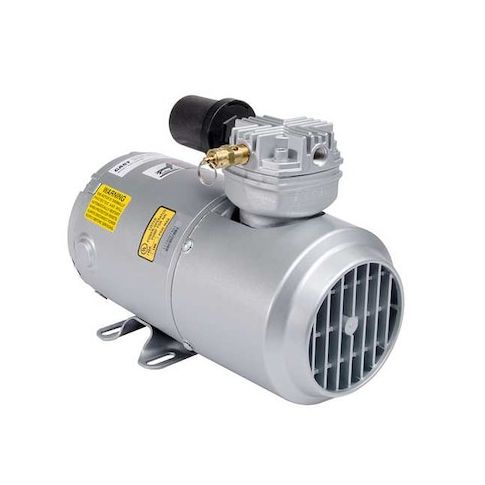

Piston Air Compressor, Size 1/4", 1725 RPM MPN:2HAH-10-M200X
Piston Air Compressor, Size 1/4", 1725 RPM
The Gast Standard 2Hah-10-M200X Piston Pump is a reliable and efficient air compressor designed for a variety of applications. Suitable for use in industrial settings, this oilless compressor provides a maximum continuous pressure of 100 psi and a free air flow rate of 1.72 cfm, making it ideal for powering tools and equipment. Its compact size and single-phase operation make it easy to integrate into existing systems, while its durable construction ensures long-lasting performance. Perfect for woodworking, metalworking, and other industrial applications, this compressor offers a convenient and cost-effective solution for meeting your air power needs.
Top product features:
- Piston Air Compressor, Oilless lubrication
- Single-phase operation at 115V AC
- Maximum continuous pressure of 100 psi
Top product applications:
- Air-powered tool operation
- Vacuum equipment operation
- Air-powered pneumatic tool operation
The Gast 2HAH-10-M200X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.72 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 6.95 A, and a measured sound level of 72 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 12.913 x 5.669 x 8.385 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.80
- Package Width: 12.20
- Package Height: 12.40
- Package Weight: 22.70
Product info last updated on February 19, 2026 10:55am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
