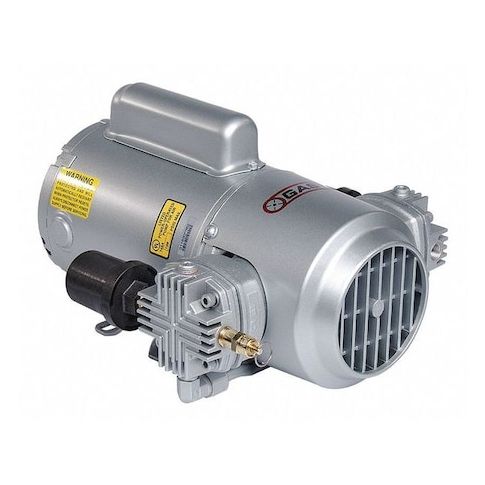

Gast Standard 3Hbb-10-M300Ax Piston Pump MPN:3HBB-10-M300AX
Gast Standard 3Hbb-10-M300Ax Piston Pump
The Gast Standard 3Hbb-10-M300Ax Piston Pump is a reliable and efficient air compressor designed for a variety of applications. Suitable for use in laboratories, medical facilities, and industrial settings, this oilless compressor provides a consistent flow of compressed air with minimal maintenance. Its compact design and quiet operation make it ideal for applications where space and noise are concerns. The pump's 2.4 cfm free air flow rate and 100 psi maximum pressure make it suitable for powering pneumatic tools, medical devices, and other equipment that require a reliable air supply. Its fast lead time and flexible ordering options make it a convenient choice for businesses and organizations.
Top product features:
- Lubrication Type Oilless
- Output Power 0.333 hp
- Maximum Continuous Pressure 100 psi
Top product applications:
- Air tools for construction and maintenance
- Automotive repair and maintenance
- Medical and laboratory equipment
The Gast 3HBB-10-M300AX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 2.4 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,742 RPM, a full-load current of 8.35 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 12.45 x 10.94 x 7.33 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.30
- Package Width: 14.60
- Package Height: 12.20
- Package Weight: 30.20
Product info last updated on February 2, 2026 1:43pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
