Piston Air Compressor, Size 1/4", 1725 RPM MPN:1HAB-25-M100X

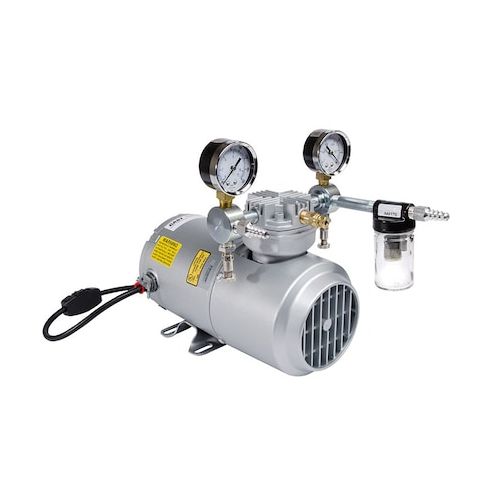

Piston Air Compressor, Size 1/4", 1725 RPM
The Gast Standard 1Hab-25-M100X Piston Pump is a reliable and efficient air compressor designed for various industrial applications. Its oilless lubrication type ensures minimal maintenance and reduces the risk of contamination, making it ideal for use in food processing, pharmaceutical, and medical industries. With a maximum continuous pressure of 100 psi and a free air flow rate of 1.31 cfm, this pump is perfect for powering tools, pneumatic systems, and other equipment. Its compact design and easy-to-use interface make it a great addition to any workshop or facility, providing a consistent and reliable air supply.
Top product features:
- Piston Air Compressor
- Oilless lubrication design
- Maximum Continuous Pressure of 100 psi
Top product applications:
- Pneumatic tool operation
- Air powered machinery operation
- Automotive air brake system
The Gast 1HAB-25-M100X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/6 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.31 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 4.45 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 14.45 x 8.1 x 10.8 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.50
- Package Width: 16.50
- Package Height: 13.00
- Package Weight: 28.15
Product info last updated on March 16, 2026 12:55pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
