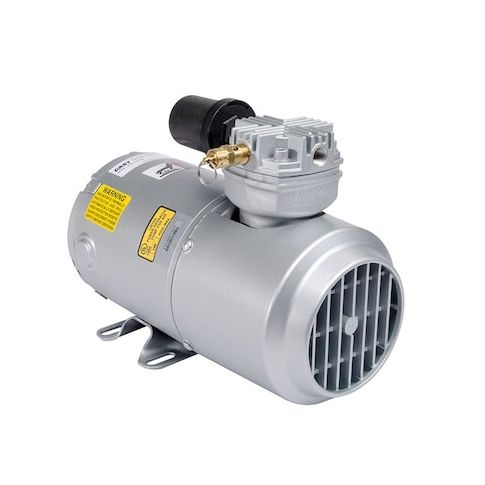

Piston Air Compressor, Size 1/4", 1725 RPM MPN:1LAA-32-M100X
Piston Air Compressor, Size 1/4", 1725 RPM
The Stock 12/Skid 1Laa-32-M100X Piston Pump from Gast is a reliable and efficient air compressor designed for various applications. Ideal for use in laboratories, medical facilities, and industrial settings, this oilless compressor provides a maximum continuous pressure of 50 psi and a free air flow rate of 1.51 cfm. Its compact size and quiet operation make it perfect for applications where space and noise are a concern. With a lead time of just one day, this compressor is perfect for projects that require quick turnaround. Its versatility and reliability make it a valuable addition to any facility.
Top product features:
- Piston Air Compressor design allows for oilless lubrication
- Capable of producing 0.166 horsepower
- Delivers a free air flow rate of 1.51 cfm
Top product applications:
- Air tools and pneumatic equipment
- Vacuum systems and applications
- Automotive repair and maintenance
The Gast 1LAA-32-M100X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/6 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.51 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM, and a full-load current of 4.45 A. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 14.07 x 8.31 x 6.03 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.70
- Package Width: 14.80
- Package Height: 12.10
- Package Weight: 25.70
Product info last updated on January 29, 2026 3:40pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
