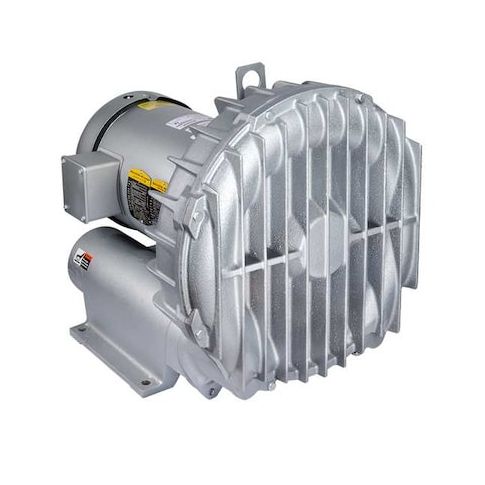

Regenerative Blower, R7100A-3, 10 hp, 425 cfm, 125 in wc Pressure, 110 in wc Vacuum, 3 Phase MPN:R7100A-3
The Skid R7100A-3 Regenerative Blower from Gast is a high-performance solution for industrial applications. This 10 hp blower is ideal for use in chemical processing, food and beverage, and pharmaceutical industries where high flow rates and vacuum levels are required. With a maximum operating pressure of 125 in wc and a maximum flow rate of 425 cfm, this blower can handle demanding tasks. Its regenerative design also provides energy efficiency and reliability. Suitable for use in a variety of applications, including vacuum systems, pneumatic conveying, and gas processing, this blower is a reliable choice for industrial professionals.
Top product features:
- Regenerative blowers provide continuous airflow and pressure without the need for an external power source.
- The product can operate at a maximum pressure of 125 in wc, making it suitable for applications requiring high pressure.
- The blower has a maximum flow rate of 425 cfm, allowing for efficient air circulation and exchange.
Top product applications:
- Vacuum systems for laboratories and research facilities
- Industrial processes requiring high-pressure air flow
- Medical facilities and hospitals requiring high-volume air flow
The GAST R7100A-3 is a three-phase regenerative blower designed for continuous duty air movement and vacuum/blower service. It delivers up to 425 cfm at 60 Hz and 350 cfm at 50 Hz, with a maximum operating pressure of 125 in. wc and a maximum vacuum of 110 in. wc. Its cast iron housing, totally enclosed fan-cooled enclosure, and dual 2-1/2 in. female NPT inlet and outlet connections support use in industrial pneumatic and air handling systems.
Key features of the GAST R7100A-3 Regenerative Blower:
- Output power: 10 hp at 60 Hz
- 8 hp at 50 Hz.
- Flow capacity: Maximum flow rate of 425 cfm at 60 Hz and 350 cfm at 50 Hz.
- Pressure and vacuum: Maximum operating pressure of 125 in. wc and maximum vacuum of 110 in. wc.
- Motor and electrical: Three-phase unit rated for 50/60 Hz operation with voltage options of 190 to 220/380 to 415V AC at 50 Hz and 208 to 230/460V AC at 60 Hz.
- Current draw: 25.8-24.6/12.3 A, and 24 A
- 12 A at 50 Hz.
- Construction: Cast iron housing with a totally enclosed fan-cooled enclosure rated NEMA 215 TCZ.
- Connections: 2-1/2 in. female NPT inlet and outlet.
- Operating limits: Maximum air temperature rise of 160 degrees F and maximum ambient temperature of 104 degrees F.
- Speed and sound: Maximum speeds of 2,850 RPM and 3,450 RPM with a sound level of 78 dBA.
- Size and weight: 22.32 in. long x 18 in. wide x 20.02 in. high
- weight 321 lb.
- Standards: CE and UKCA.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.00
- Package Width: 26.50
- Package Height: 23.00
- Package Weight: 321.00
