Piston Air Compressor/Vacuum Pump, 1/2HP MPN:4LCB-10-M450X
Piston Air Compressor/Vacuum Pump, 1/2HP
The Gast Piston Air Compressor/Vacuum Pump is a versatile and reliable solution for a wide range of applications. Suitable for use in laboratories, medical facilities, and other environments where oil-free operation is required, this compressor/vacuum pump delivers 0.5 horsepower of output power and can reach maximum pressures of 50 psi and a maximum vacuum of 27.5 in Hg. With a free air flow rate of 4.1 cfm, it can efficiently handle various tasks, making it an ideal choice for applications such as testing, analysis, and equipment maintenance. Its compact design and reliable operation make it a valuable addition to any facility.
Top product features:
- Lubrication type is oil free
- Has two cylinders
- Produces 50 psi maximum continuous pressure
Top product applications:
- Laboratory Equipment
- Medical Equipment
- Research and Development Facilities

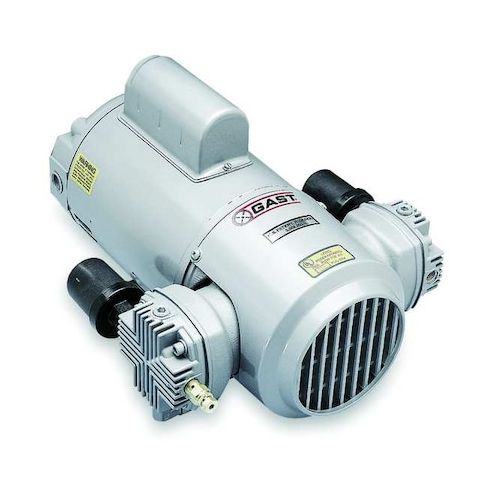

The Gast 4LCB-10-M450X is an oil-free, twin-cylinder piston air compressor/vacuum pump with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 3 CFM at 50 psi up to 4.1 CFM at 0 psi, a maximum continuous pressure of 50 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 12/6 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 13.166 x 12 x 8.875 in (L x W x H).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 14.70
- Package Height: 12.10
- Package Weight: 36.60
Product info last updated on January 31, 2026 11:04pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
