Rocking Piston Air Compr, 0.5 hp, 1 Phase MPN:87R645-101-N470X
Rocking Piston Air Compr, 0.5 hp, 1 Phase
This compact Rocking Piston Air Comp from Gast is perfect for a wide range of applications, including laboratory, medical, and industrial settings. With its 1/2HP motor and ability to produce 30psi of continuous pressure, it's ideal for powering pneumatic tools and equipment. The oil-free design ensures a clean and reliable air supply, while the compact size and lightweight construction make it easy to install and maintain. Suitable for use in a variety of industries, this compressor is a great solution for applications where a reliable and efficient air supply is critical.
Top product features:
- Lubrication Type Oil Free
- Maximum Continuous Pressure 30 psi
- Maximum Intermittent Pressure 30 psi
Top product applications:
- Paint spraying
- Automotive detailing
- Pneumatic tool operation

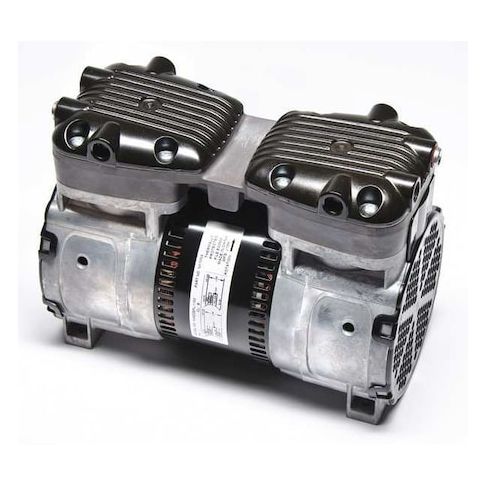

The Gast 87R645-101-N470X is an oil-free, twin-cylinder rocking piston air compressor. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.88 CFM at 100 psi up to 4.6 CFM at 0 psi, a maximum continuous pressure of 30 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 6.0/3.0 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an electric motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.625 x 5.125 x 7.125 in (L x W x H).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 10.10
- Package Height: 11.00
- Package Weight: 23.80
Product info last updated on March 12, 2026 3:28pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
