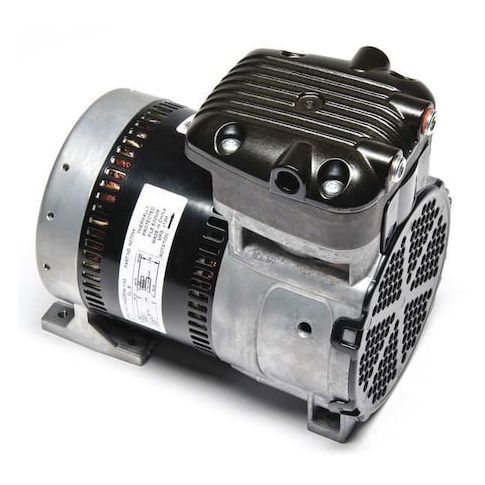

Rocking Piston Air Comp, 1/4HP, 100/100psi MPN:87R135-101-N270X
Rocking Piston Air Comp, 1/4HP, 100/100psi
This compact Rocking Piston Air Comp from Gast is a reliable and efficient solution for various applications. Its 0.25 hp output and 100 psi maximum pressure make it suitable for powering tools and equipment in workshops, garages, and industrial settings. The oil-free design ensures easy maintenance and reduces the risk of contamination. With a free air flow rate of 2 cfm and a maximum speed of 1,725 RPM, this compressor can handle moderate air demands. Its compact size and lightweight design make it ideal for use in tight spaces or for portable applications.
Top product features:
- Rocking piston design for efficient air compression
- Oil-free lubrication for reduced maintenance and risk of contamination
- Maximum continuous pressure of 100 psi for reliable operation in various applications
Top product applications:
- Painting and Coating
- Powder coating, paint spraying, and other applications requiring compressed air for efficient and controlled application of materials.
- Automotive and Industrial Maintenance
The Gast 87R135-101-N270X is an oil-free, single-cylinder rocking piston air compressor. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.7 CFM at 100 psi up to 2.0 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 26.7 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 2.6/1.4 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an electric motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.75 x 5.125 x 7.125 in (L x W x H).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 10.30
- Package Height: 11.20
- Package Weight: 17.95
Product info last updated on January 23, 2026 7:57pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
