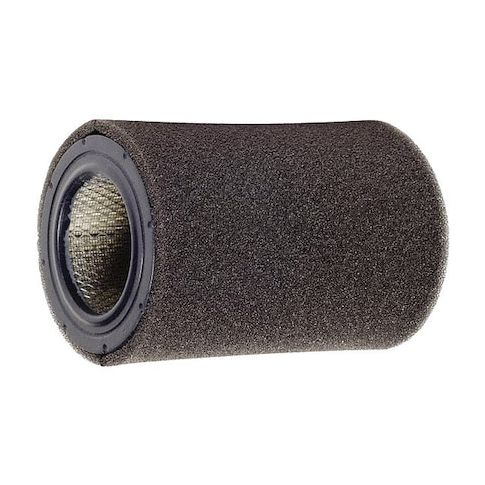

Inlet Vacuum Filter, Heavy Duty, 2 1/2 in MPT Male Inlet, 10 Micron, Screw On MPN:AJ126G
The Gast Inlet Vacuum Filter is a reliable and efficient solution for Gast brand pressure intake systems. This 2 1/2 inch filter features a 10 micron rating, capturing even the smallest contaminants to ensure optimal system performance. Its compact design makes it ideal for use in a variety of applications, including medical, laboratory, and industrial settings. By installing this filter, users can reduce downtime and maintenance costs, while also improving overall system reliability and extending the lifespan of their equipment. Its ease of installation and maintenance makes it a valuable addition to any Gast brand system.
Top product features:
- It captures particles as small as 10 microns.
- It filters pressure intake.
- It allows for a 2 1/2 inch inlet.
Top product applications:
- Compressed Air Dryers
- Oil-Free Air Compressors
- Medical Gas Systems
The GAST - AJ126G is an inlet vacuum filter designed for use in pneumatic conveying systems. It functions to remove dust, particulates, and liquid carryover from incoming air and reduces contaminants in the air entering the system. This pressure-rated intake filter has a disposable paper filter element with a filtration efficiency of 99%, rated to capture particles as small as 10 micron. It is compatible with Gast brand equipment, specifically matching the R7100A-3 part number and the R7 series.
Key Features:
- - Application: Pneumatic conveying systems.
- - Filter element material: Paper.
- - Filter rating: 10 micron for particle capture.
- - Filtration efficiency: 99%.
- - Housing material: Steel for structural protection.
- - Inlet size: 2 1/2 inches.
- - Inlet type and gender: MPT (male pipe thread).
- - Connection style: Screw on.
- - Maximum air flow: 400 cubic feet per minute (cfm).
- - Number of air inlets: 1.
- - Dimensions: Outside diameter of 10 inches and overall height of 13 1/16 inches.
- - Disposable: Yes, designed for single-use replacement.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.60
- Package Width: 10.60
- Package Height: 15.60
- Package Weight: 9.40
