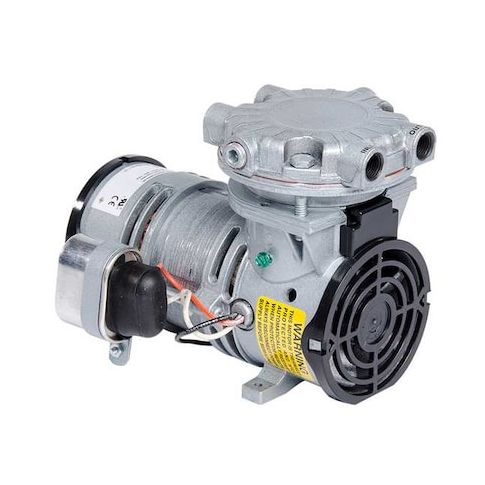

Piston Air Compressor, Size 1/4", 2000 RPM MPN:LOA-101-JR
Piston Air Compressor, Size 1/4", 2000 RPM
The Loa-101-Jr Rocking Piston Pump from Gast is a compact and reliable air compressor designed for a variety of applications. Ideal for use in laboratories, medical facilities, and other settings where oilless operation is required, this pump delivers a free air flow rate of 0.66 cfm and a maximum continuous pressure of 100 psi. Its small size and quiet operation make it perfect for use in tight spaces and noise-sensitive environments. The pump's durability and long lifespan also make it an excellent choice for applications where maintenance is a concern, such as in industrial and commercial settings.
Top product features:
- Piston Air Compressor
- Oilless Lubrication
- Maximum Continuous Pressure 100 psi
Top product applications:
- Automotive Air Conditioning Systems
- Medical Equipment and Devices
- Industrial Cleaning and Painting Operations
The Gast LOA-101-JR is an oil-free, single-cylinder piston air compressor with a reciprocating design. It runs on 11 to 15V DC power at a rated 0.1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.1 CFM at 100 psi up to 0.66 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 2,000 RPM, a full-load current of 9 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a brushed DC motor, and reed valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.13 x 4.28 x 5.97 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 2,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 25.00
Product info last updated on February 19, 2026 10:08am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
