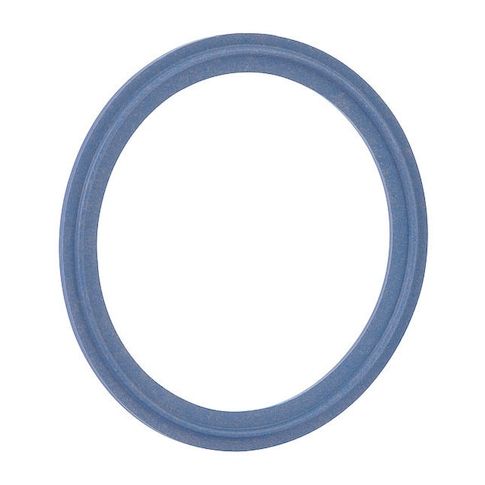

Sanitary Gasket, 1In, TRI-Clamp, TUF-STEEL MPN:40MPG-TS-XR-100
Sanitary Gasket, 1In, TRI-Clamp, TUF-STEEL
The Garlock Sanitary Gasket is a high-performance solution for pharmaceutical, food and beverage, and biotech industries. Made with PTFE/316L stainless steel, this gasket provides exceptional resistance to corrosion and extreme temperatures, ranging from -320°F to 550°F. Its tri-clamp design ensures easy installation and removal, while its blue color and x-ray detectable properties enhance safety and quality control. Ideal for applications where cleanliness and precision are paramount, this gasket is perfect for tube connections in process equipment, reactors, and piping systems. Its durability and reliability make it a trusted choice for demanding sanitary processes.
Top product features:
- PTFE/316L Stainless Steel gasket material provides chemical resistance and durability
- Tri-Clamp connection type allows for easy installation and disassembly
- Operating temperature range of -320 to 550 Degrees F enables use in extreme environments
Top product applications:
- Sanitary Gasket can be used in Pharmaceutical Processing applications where high temperature and chemical resistance are required.
- Sanitary Gasket can be used in Food and Beverage Processing applications where non-reactive and easy-to-clean materials are necessary.
- Sanitary Gasket can be used in Biotechnology applications where high temperature and corrosion resistance are required.
Sanitary Gasket, Gasket Material PTFE/316L Stainless Steel, Connection/Fitting Type Tri-Clamp, For Tube Outside Diameter 1 in, Inside Diameter 0.9 in, Outside Diameter 2 in, Color Blue, Outside Diameter Style Standard, X-Ray Detectable Yes, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 550 Degrees F, Mesh Size Not Applicable, Center Material Not Applicable, Center Construction None, Reinforced No, Metal Detectable Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 0.20
- Package Weight: 0.03
Product info last updated on May 8, 2026 2:26pm UTC
Category: Sealing and Gasketing
