Gasket, Ring, 5 In, Metal, Yellow MPN:C000505003
Gasket, Ring, 5 In, Metal, Yellow

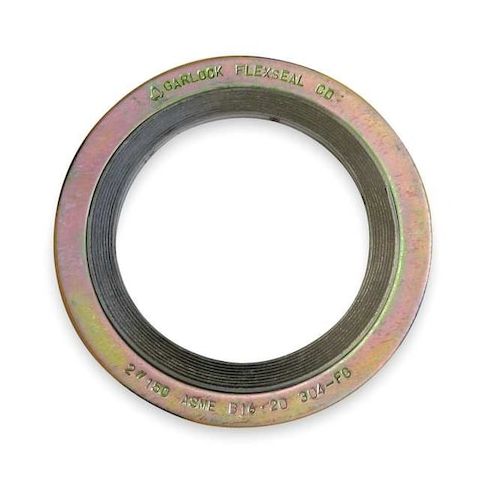

This Garlock Spiral Wound Flange Gasket is designed for use on ANSI Class 300 flanges, providing a reliable seal for pipes up to 5 inches in size. Its unique spiral winding pattern ensures excellent resistance to compression and pressure, while the graphite filler material provides additional sealing capabilities. With a temperature range of -320°F to 842°F, this gasket is suitable for a wide range of applications, including chemical processing, power generation, and oil and gas production. Its durable construction and long-lasting performance make it an ideal choice for heavy-duty industrial use.
Top product features:
- Spiral winding provides a flexible and adaptable seal for the flange.
- Graphite filler material enhances the gasket's sealing performance in high-temperature applications.
- Carbon steel outer ring provides durability and resistance to corrosion.
Top product applications:
- High-temperature industrial piping systems
- Oil and gas refining and processing
- Chemical processing and handling
Spiral Wound Flange Gasket, For Flange ANSI Class 300, For Pipe Size 5 in, Inside Diameter 6 1/8 in, Outside Diameter 8 1/2 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 8.60
- Package Height: 0.30
- Package Weight: 0.84
Product info last updated on January 19, 2026 11:04pm UTC
Category: Sealing and Gasketing
