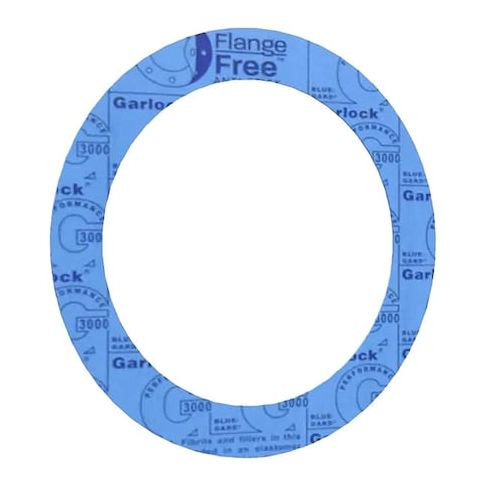

Ring Flange Gasket, Blue, 5 in Pipe Size
This Ring Flange Gasket is designed for use with ANSI Class 300 flanges on 5-inch pipes, providing a reliable seal in high-temperature applications up to 700°F. The gasket's aramid material ensures durability and resistance to extreme temperatures, while the Buna-N binder provides flexibility and resistance to compression set. Suitable for use in chemical processing, power generation, and oil and gas industries, this gasket offers long-lasting performance and minimal maintenance. Its compact design and easy installation make it an ideal choice for applications where space and accessibility are limited.
Top product features:
- Aramid gasket material provides chemical resistance and durability.
- Buna-N binder material offers flexibility and resistance to compression set.
- The gasket is designed for use with ANSI Class 300 flanges, ensuring compatibility with standard flange connections.
Top product applications:
- Chemical Processing
- Pulp and Paper Processing
- Power Generation
Ring Flange Gasket, Gasket Material Aramid, Insert Material None, For Pipe Size 5 in, For Flange ANSI Class 300, Binder Material Buna-N, Color Blue, Inside Diameter 5 14/25 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 700 Degrees F, Outside Diameter 8 1/2 in, Thickness 1/8 in, Gasket Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners None, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 8.50
- Package Height: 0.12
- Package Weight: 0.26
Product info last updated on January 19, 2026 10:23am UTC
Category: Sealing and Gasketing
