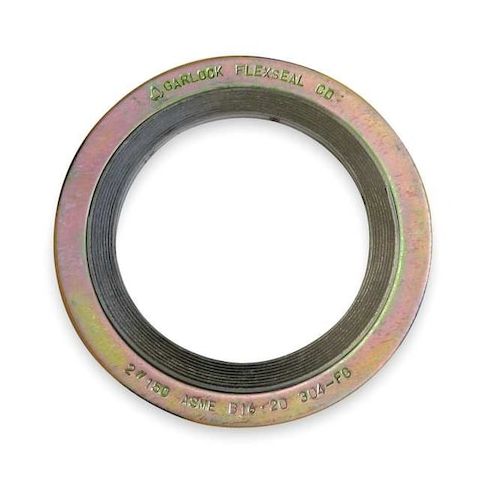

Gasket, Ring, 2 In, Metal, Yellow MPN:C000502003
Gasket, Ring, 2 In, Metal, Yellow
Garlock's 2-inch metal spiral wound flange gasket is designed for use with ANSI Class 300, 400, and 600 flanges, providing a reliable seal for pipes in extreme temperatures. The gasket's graphite filler material and stainless steel spiral winding offer excellent durability and resistance to corrosion, while the carbon steel outer ring provides added strength. With a temperature range of -320°F to 850°F, this gasket is ideal for use in chemical processing, power generation, and oil and gas applications. Its compact size and easy installation make it a convenient choice for a variety of industrial settings.
Top product features:
- Spiral winding provides a strong and durable seal for the flange.
- Graphite filler material enhances the gasket's sealing performance in extreme temperatures.
- Carbon steel outer ring provides resistance to corrosion and wear.
Top product applications:
- Pipe flange gasket for ANSI Class 300, 400, 600 applications
- High-temperature sealing in chemical processing equipment
- Steam turbine applications requiring high-pressure and high-temperature resistance
Spiral Wound Flange Gasket, For Flange ANSI Class 300, 400, 600, For Pipe Size 2 in, Inside Diameter 2 3/4 in, Outside Diameter 4 3/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 850 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 0.30
- Package Weight: 0.28
Product info last updated on April 2, 2026 5:49pm UTC
Category: Sealing and Gasketing
