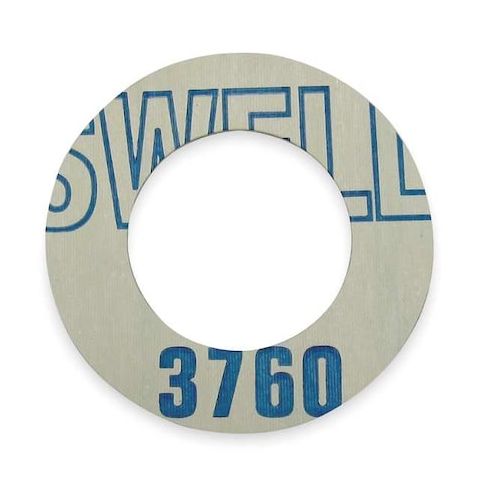

Gasket, Ring, 1 In, Synthetic Fiber, Blue MPN:37760-0101
Gasket, Ring, 1 In, Synthetic Fiber, Blue
This Garlock Blue Synthetic Fiber Ring Gasket is designed for use in high-temperature applications, with a maximum operating temperature of 400°F. Its synthetic fiber material provides excellent resistance to chemicals and abrasion, making it suitable for use in a variety of industries, including oil and gas, chemical processing, and power generation. The gasket's ring flange design allows for easy installation and sealing, while its rubber binder ensures a secure fit. Ideal for use on ANSI Class 150 flanges, this gasket is a reliable and long-lasting solution for applications requiring high-temperature sealing and chemical resistance.
Top product features:
- Synthetic fiber material provides resistance to chemicals and extreme temperatures.
- The gasket has a rubber binder for added sealing performance.
- The ring design allows for easy installation and secure sealing on 1-inch flanges.
Top product applications:
- Steam and gas applications where high temperature and pressure resistance is required
- Chemical processing where a non-asbestos gasket is necessary
- Oil and gas refining where a synthetic fiber gasket can withstand harsh environments
Ring Flange Gasket, Gasket Material Synthetic Fiber, Insert Material None, For Pipe Size 1 in, For Flange ANSI Class 150, Binder Material Rubber, Color Blue, White, Inside Diameter 1 5/16 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 400 Degrees F, Outside Diameter 2 5/8 in, Thickness 1/16 in, Product Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 0.10
- Package Weight: 0.02
Product info last updated on March 30, 2026 7:43pm UTC
Category: Sealing and Gasketing
