Enclosed Pre-Wired Relay, 20A at 300VAC, DPDT MPN:RIB24P
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0682507

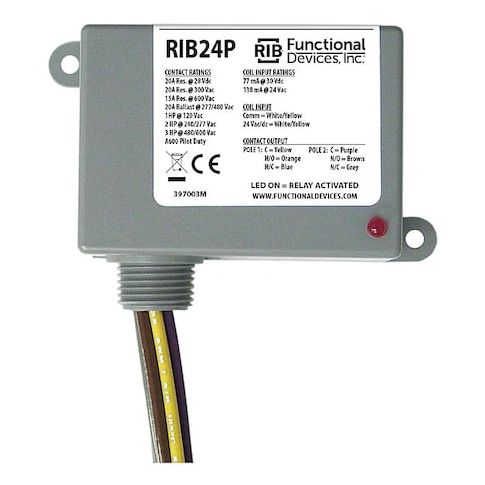

Enclosed Pre-Wired Relay, 20A at 300VAC, DPDT
This versatile relay is designed for a wide range of applications, including controlling exhaust fans, motors, and vacuums. Its 20A rating at 300VAC and DPDT contact form make it suitable for high-current switching tasks. The relay's compact size and NEMA 1 enclosure ensure easy installation and protection from the elements. With a lead time of just one day, you can quickly get your projects up and running. Ideal for use in commercial and industrial settings, this relay is a reliable and efficient solution for controlling high-power devices. Its gold-flashed silver cadmium oxide contacts ensure long-lasting performance.
Top product features:
- Enclosed design provides a secure and protected environment for the relay
- DPDT contact form enables the relay to control two separate circuits with a single input
- Gold flashed silver cadmium oxide contacts provide reliable and durable switching performance
Top product applications:
- Exhaust Fans
- Motors
- Vacuums
Enclosed Pre-Wired Relay, Contact Form DPDT, Current Rating 20 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 15 A @ 600V, 20 A @ 277 to 480/300V, Contact Rating (DC) 20 A @ 28V, Input Voltage 24V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 1.8 in, Body Width 3.2 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Lead Length 16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 2.60
- Package Height: 6.50
- Package Weight: 0.71
Product info last updated on January 31, 2026 11:53pm UTC
Category: Industrial Electrical Controls and Automation
