Enclosed Pre-Wired Relay, 20A at 300VAC, DPDT MPN:RIB04P
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0603312

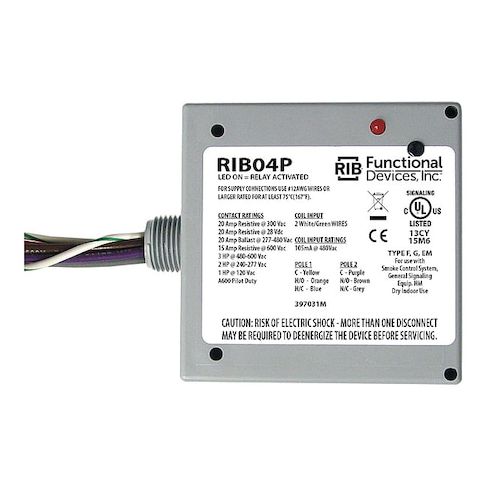

Enclosed Pre-Wired Relay, 20A at 300VAC, DPDT
This enclosed pre-wired relay is a versatile and reliable solution for a wide range of applications, including control of exhaust fans, motors, and vacuums. Its high current rating of 20A and voltage rating of up to 480V AC make it suitable for heavy-duty use. The relay's DPDT configuration provides flexible switching options, while its NEMA 1 enclosure ensures durability and protection from the elements. With a lead time of just one day, this relay is ideal for applications requiring rapid deployment, such as in industrial or commercial settings. Its compact size and ease of use make it a valuable addition to any control system.
Top product features:
- Enclosed design protects the internal components from dust and moisture
- DPDT (Double Pole Double Throw) contact form allows for complex switching configurations
- Gold flashed silver cadmium oxide contact material provides long-lasting and reliable switching performance
Top product applications:
- Exhaust Fans
- Motors
- Vacuums
Enclosed Pre-Wired Relay, Coil Voltage 480V AC, Contact Form DPDT, Current Rating 20 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 15 A @ 600V, 20 A @ 277 to 480/300V, Contact Rating (DC) 20 A @ 28V, Input Voltage 480V AC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 1.8 in, Body Width 4 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 2.70
- Package Height: 6.50
- Package Weight: 0.94
Product info last updated on January 15, 2026 7:59am UTC
Category: Industrial Electrical Controls and Automation
