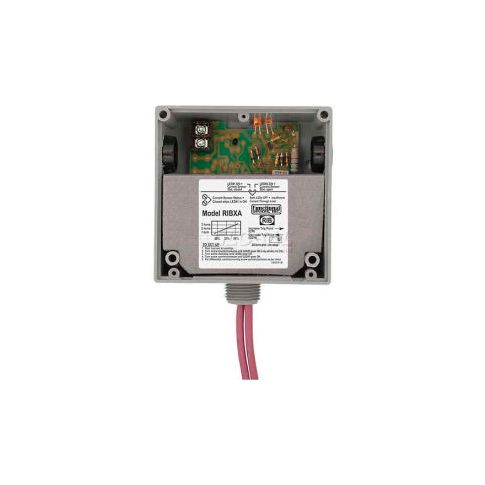

RIB® Enclosed Internal AC Sensor RIBXA Adjustable .50-30A SPST 30VAC/DC RIBXA
RIB® Enclosed Internal AC Sensor RIBXA Adjustable .50-30A SPST 30VAC/DC
The RIBXA Adjustable Enclosed Internal AC Sensor is a versatile and reliable solution for monitoring and controlling electrical loads. This compact device senses currents from .50-30A and can be used to activate external contactors or control loads up to 20A without an external current ring. With adjustable current sensing trigger points and externally visible LEDs, it provides clear status indication. Suitable for a range of applications, including industrial automation, commercial building management, and residential smart home systems, the RIBXA offers convenience, flexibility, and increased safety. Its compact design and easy installation make it an ideal choice for various electrical monitoring needs.
Top product features:
- The product has a current sensor with adjustable trigger points from .50-30A.
- The product contains an internal 10 amp relay to activate an external contactor.
- The product has externally visible LEDs to indicate the status of the relay coil and current sensor trigger.
Top product applications:
- Monitoring and controlling external contactors
- Controlling and sensing up to 20 amp loads
- Activating an external contactor with currents up to 150 amps
Rib® enclosed internal ac sensor ribxa adjustable .50-30a spst 30vac/dc the x series contains current sensors with or without a 10 or 20 amp relay. An internal 10 amp relay can be used to activate an external contactor and currents up to 150 amps are sensed externally with a solid or split current sensing ring. Other units control and sense up to 20 amp loads without the use of an external current ring greatly reducing installation time. Models are available with fixed or adjustable current sensing trigger points or with voltage out. Externally visible leds indicate the status of the relay coil and current sensor trigger. The (closed-open-auto) override switch available on certain models is a true override switch located on the load side of the relay.
Additional Information
- UNSPSC: 39122300
- Brand: Functional Devices
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: JA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.80
- Package Weight: 0.87
Product info last updated on April 5, 2026 7:14am UTC
Category: Relays and Sequencers
