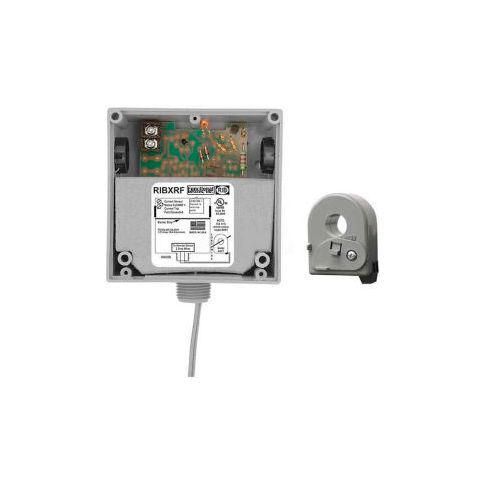

RIB® Enclosed Solid-Core AC Sensor RIBXRF Fixed 1.25-150A SPST 30VAC/DC RIBXRF
RIB® Enclosed Solid-Core AC Sensor RIBXRF Fixed 1.25-150A SPST 30VAC/DC
The RIBXRF from Functional Devices is a versatile and reliable enclosed solid-core AC sensor designed for a wide range of applications. Suitable for use in commercial and industrial settings, this sensor accurately measures currents up to 150 amps and can be used to control loads of up to 20 amps. The internal 10 amp relay allows for activation of an external contactor, while externally visible LEDs indicate the status of the relay coil and current sensor trigger. Ideal for use in lighting control, HVAC, and security systems, the RIBXRF offers a convenient and efficient solution for monitoring and controlling electrical currents.
Top product features:
- The product contains an internal 10 amp relay that can be used to activate an external contactor.
- Currents up to 150 amps can be sensed externally with a solid or split current sensing ring.
- Externally visible LEDs indicate the status of the relay coil and current sensor trigger.
Top product applications:
- Overcurrent protection for industrial control systems
- Monitoring and control of 3-phase AC power systems
- Protection of motors and other high-current loads
Rib® enclosed solid-core ac sensor ribxrf fixed 1.25-150a spst 30vac/dc the x series contains current sensors with or without a 10 or 20 amp relay. An internal 10 amp relay can be used to activate an external contactor and currents up to 150 amps are sensed externally with a solid or split current sensing ring. Other units control and sense up to 20 amp loads without the use of an external current ring greatly reducing installation time. Models are available with fixed or adjustable current sensing trigger points or with voltage out. Externally visible leds indicate the status of the relay coil and current sensor trigger. The (closed-open-auto) override switch available on certain models is a true override switch located on the load side of the relay.
Additional Information
- UNSPSC: 39122300
- Brand: Functional Devices
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: JA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.80
- Package Weight: 0.68
Product info last updated on April 4, 2026 7:23pm UTC
Category: Relays and Sequencers
