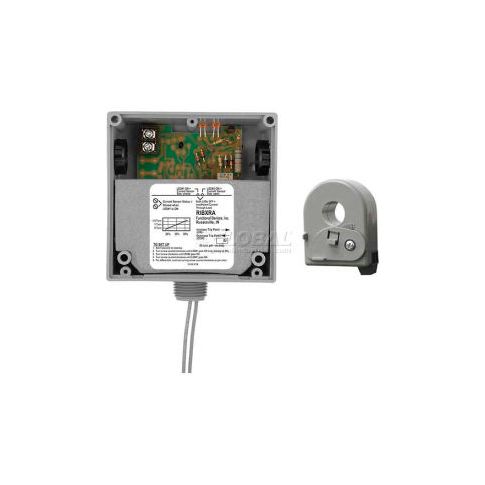

RIB® Enclosed Solid-Core AC Sensor RIBXRA Adjustable 1.25-150A SPST 30VAC/DC RIBXRA
RIB® Enclosed Solid-Core AC Sensor RIBXRA Adjustable 1.25-150A SPST 30VAC/DC
The RIBXRA Enclosed Solid-Core AC Sensor is a versatile and adjustable current sensor designed for a wide range of applications. It can sense currents from 1.25 to 150A and can be used to control and sense up to 20A loads without the need for an external current ring. The sensor features an internal 10A relay, externally visible LEDs, and a true override switch, making it ideal for use in industrial, commercial, and residential settings. Its compact design and adjustable trigger points make it a reliable and efficient solution for monitoring and controlling electrical currents.
Top product features:
- Enclosed solid-core AC sensor design allows for sensing currents up to 150 amps externally with a solid or split current sensing ring.
- Internal 10 amp relay can be used to activate an external contactor.
- Externally visible LEDs indicate the status of the relay coil and current sensor trigger.
Top product applications:
- Industrial Control Systems
- Building Management Systems
- Power Distribution Systems
Rib® enclosed solid-core ac sensor ribxra adjustable 1.25-150a spst 30vac/dc the x series contains current sensors with or without a 10 or 20 amp relay. An internal 10 amp relay can be used to activate an external contactor and currents up to 150 amps are sensed externally with a solid or split current sensing ring. Other units control and sense up to 20 amp loads without the use of an external current ring greatly reducing installation time. Models are available with fixed or adjustable current sensing trigger points or with voltage out. Externally visible leds indicate the status of the relay coil and current sensor trigger. The (closed-open-auto) override switch available on certain models is a true override switch located on the load side of the relay.
Additional Information
- UNSPSC: 39122300
- Brand: Functional Devices
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: JA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.80
- Package Weight: 0.68
Product info last updated on February 2, 2026 1:38pm UTC
Category: Relays and Sequencers
