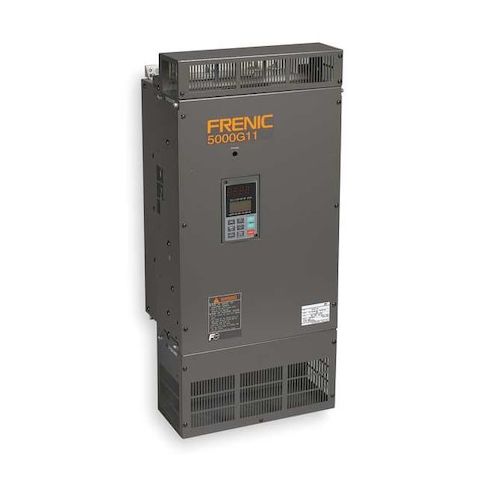

Variable Frequency Drive, 150 HP, 200-230V MPN:FRN150G1S-2U
Variable Frequency Drive, 150 HP, 200-230V
This 150 HP Variable Frequency Drive from Fuji is a versatile and efficient motor control solution for a wide range of applications. Suitable for use in industrial settings, such as manufacturing and processing, it allows for adjustable acceleration and deceleration times, making it ideal for applications requiring precise speed control. With a dynamic braking system and adjustable output frequency range, it provides smooth and reliable operation. Its compact design and robust construction make it a reliable choice for demanding environments, and its easy-to-use interface simplifies setup and operation. Ideal for use in various industries, including manufacturing and processing.
Top product features:
- Variable Frequency Drive adjusts output frequency range from 0 to 500 Hz
- Variable Frequency Drive provides adjustable acceleration time from 0 to 6000 seconds
- Variable Frequency Drive allows for dynamic braking with a separate brake unit and resistor
Top product applications:
- Motor Control for High-Torque Applications
- Pumping Systems with Variable Flow Rates
- High-Speed Material Handling Equipment
Variable Frequency Drive, Max. HP 150 hp, Open Enclosure, 240V AC Input Voltage, Max. Output Amps 346 A, 240V AC Output Voltage, Input Phase AC 1 or 3, Output Phase AC 3, No Bypass, No Line Contactor, Starting Torque 200 Percent, Torque @ 1 Hz 200 Percent, Input Frequency 120 Hz, Output Frequency Range 0 to 500 Hz, Adjustable Acceleration Time 0 to 6000 sec, Adjustable Deceleration Time 0 to 6000 sec, Dynamic Braking Brake Unit and Resistor Separate Items, Height 34.65 in, Width 24.8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 48.00
- Package Width: 36.80
- Package Height: 18.17
- Package Weight: 312.00
