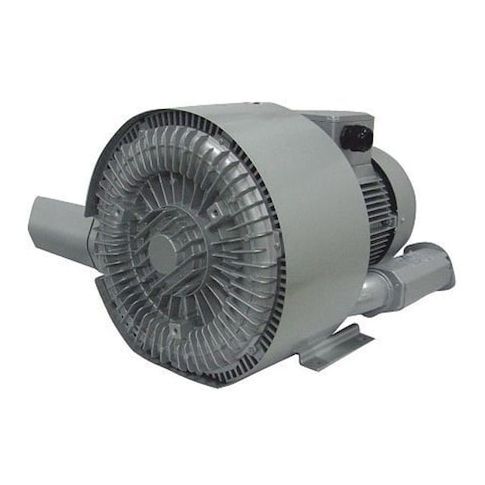

Regenerative Blower, 2-Stage Ring Compressor, 7.4 hp, 2 in FNPT, 230/460V AC, 3 Phase MPN:2VFB60-8.4-7W
The Fuji Regenerative Blower is a powerful 2-stage ring compressor designed for high-performance applications. With an output power of 8.4 hp and maximum operating pressure of 199.4 in wc, it provides efficient and reliable airflow for a variety of industries. Ideal for use in vacuum systems, material handling, and manufacturing processes, this blower offers significant benefits, including increased productivity, reduced energy consumption, and improved system performance. Its compact design and durable aluminum housing make it a versatile solution for applications requiring high flow rates and vacuum pressures.
Top product features:
- 2-Stage Ring Compressors provide a high output power of 8.4 hp.
- The Regenerative Blower has a maximum flow rate of 222 cfm.
- The product features a maximum operating pressure of 199.4 in wc.
Top product applications:
- Air conditioning and refrigeration systems
- Industrial vacuum systems
- Laboratory vacuum systems
FUJI ELECTRIC 2VFB60-8.4-7W is a 2-stage ring compressor/regenerative blower with a 7.4 hp, three-phase motor for moving air in pressure or vacuum applications. It features 2 in. female NPT inlet and outlet connections, an aluminum housing, and a totally enclosed fan-cooled motor enclosure. This unit is designed for 60 Hz operation and can be used where continuous airflow, vacuum, or low-pressure air movement is required.
Key features of the FUJI ELECTRIC 2VFB60-8.4-7W:
- 2-stage ring compressor design: Built as a regenerative blower for pressure and vacuum air movement.
- Motor and power: 7.4 hp motor with 8.4 hp output power.
- Electrical configuration: 230/460V AC, three-phase, 60 Hz.
- Current ratings: 26.0/13.8 A current rating
- full load amps 26.1-21.1/13.8-12.1.
- Airflow: Maximum flow rate of 222 cfm.
- Pressure capability: Maximum pressure up to 200 in. WC.
- Vacuum capability: Maximum vacuum up to 185 in. WC.
- Connections: 2 in. female NPT inlet and 2 in. female NPT outlet.
- Construction: Aluminum housing with a totally enclosed fan-cooled enclosure.
- Operating conditions: Maximum ambient temperature of 104 degrees F and automatic reset thermal protection.
- Noise level: 77 dB.
- Size and weight: 24 in. overall length, 13.5 in. depth, 17 in. height, and 170 lb weight.
- Standards: CE and CSA.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.80
- Package Width: 21.80
- Package Height: 27.00
- Package Weight: 170.00
