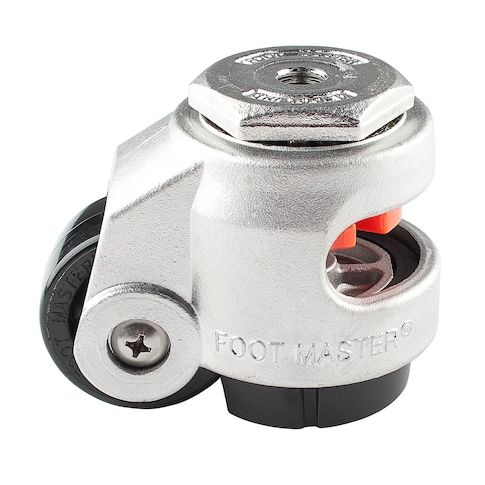

Leveling Caster, 50 mm Nylon Wheel, M12x1.75P Stem, Swivel, 280kg Cap, NBR Foot Pad, Stainless Steel MPN:SGDN-60-S-NYN
Leveling Caster, 50 mm Nylon Wheel, M12x1.75P Stem, Swivel, 280kg Cap, NBR Foot Pad, Stainless Steel
The FOOT MASTER SGDN-60-S-NYN leveling caster is a revolutionary product that combines mobility, adjustability, and stability in one device. Ideal for harsh environments, this stainless steel caster features a strong and compact design, with a 280kg weight capacity and 10mm of height adjustment capability. Its swivel section contains SS ball bearings for easy maneuverability, while the 50mm diameter wheel and ABS thermoplastic thumbwheel ensure smooth movement and precise leveling. Perfect for applications such as heavy machinery, industrial equipment, and medical facilities, this leveling caster provides reliable performance and dependable reliability, making it a must-have for any operation requiring precision and mobility.
Top product features:
- Thick stainless steel frame provides a strong and compact design.
- Height adjustment capability of up to 10 mm allows for accurate leveling.
- Two sets of stainless steel ball bearings enable easy maneuverability.
Top product applications:
- Machine Tool Leveling
- Industrial Equipment Leveling
- Medical Equipment Leveling
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The SGDN Series offers stainless steel leveling casters for harsh environments. A thick SS frame is used to achieve the combination of being both strong and compact. SGDN-60-S-NYN is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. SGDN-60-S-NYN is mounted using a SS M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of SS ball bearings for easy maneuverability, as well as hardened SS bearing raceway sleeves to prevent scouring. All components are completely corrosion resistant, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with a SS axle shaft. And once positioned, the caster provides rear access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The SGDN Series offers stainless steel leveling casters for harsh environments. A thick SS frame is used to achieve the combination of being both strong and compact. SGDN-60-S-NYN is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. SGDN-60-S-NYN is mounted using a SS M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of SS ball bearings for easy maneuverability, as well as hardened SS bearing raceway sleeves to prevent scouring. All components are completely corrosion resistant, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with a SS axle shaft. And once positioned, the caster provides rear access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.86
- Package Width: 4.33
- Package Height: 6.30
- Package Weight: 2.20
Product info last updated on March 21, 2026 4:44pm UTC
Category: Casters and Wheels
