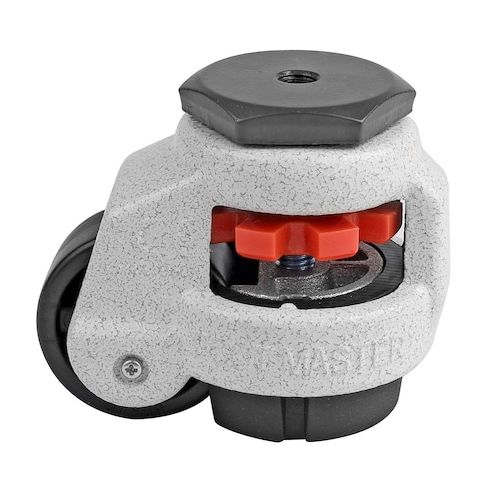

Leveling Caster, 42 mm Nylon Wheel, M8x1.25P Stem, Swivel, 60 kg Cap, NBR Foot Pad, Ivory MPN:GD-40-S-NYN
Leveling Caster, 42 mm Nylon Wheel, M8x1.25P Stem, Swivel, 60 kg Cap, NBR Foot Pad, Ivory
Elevate your operations with the FOOT MASTER GD-40-S-NYN leveling caster, a game-changing solution for industries seeking precision and mobility. This innovative product combines the stability of a foot pad, the height adjustability of a level mount, and the freedom of a caster, making it perfect for applications requiring frequent level adjustments, such as manufacturing, warehousing, and healthcare facilities. With its robust aluminum frame, swivel section, and 42mm nylon wheel, this caster provides smooth movement and reliable performance, even under heavy loads, ensuring seamless operations and increased productivity.
Top product features:
- A thick aluminum frame is used to achieve a combination of being both strong and compact.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
- The 42 mm diameter wheel is mated with an axle shaft made of cold forged steel for smooth movement.
Top product applications:
- Industrial equipment manufacturers use this product to ensure their machinery is properly leveled on uneven factory floors.
- Robotics engineers integrate the leveling caster into their robotic systems to maintain stability and precision in various applications.
- Furniture makers employ the product to create adjustable, ergonomic workstations that can be customized to meet the needs of individual workers.
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-40-S-NYN is rated at 60 kg with an overall height of 71 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-40-S-NYN is mounted using a M8 x 1.25P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 42 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-40-S-NYN is rated at 60 kg with an overall height of 71 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-40-S-NYN is mounted using a M8 x 1.25P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 42 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.28
- Package Width: 3.15
- Package Height: 5.12
- Package Weight: 0.88
Product info last updated on January 31, 2026 9:25pm UTC
Category: Casters and Wheels
