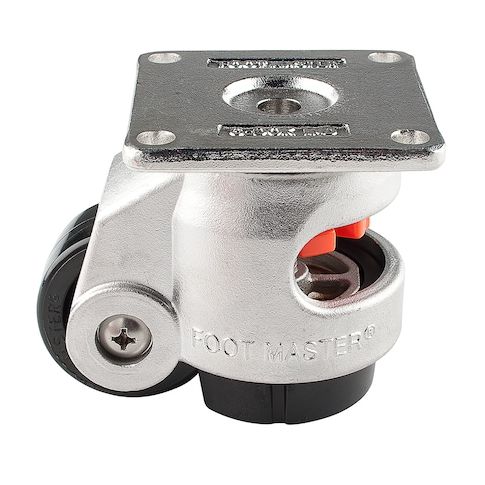

Leveling Caster, 50 mm Nylon Wheel, 73x73 mm Plate, Swivel, 280 kg Cap, NBR Pad, Stainless Steel MPN:SGDN-60-F-NYN
Leveling Caster, 50 mm Nylon Wheel, 73x73 mm Plate, Swivel, 280 kg Cap, NBR Pad, Stainless Steel
Elevate your operations with the SGDN-60-F-NYN leveling caster, engineered for harsh environments. This ingenious product combines mobility, height adjustability, and stability, making it perfect for applications where precision leveling is crucial. Ideal for use in industries such as food processing, pharmaceuticals, and laboratories, this caster ensures smooth movement and precise positioning of heavy loads. With its robust stainless steel construction, corrosion-resistant design, and smooth swivel action, the SGDN-60-F-NYN leveling caster provides dependable reliability and high performance, making it an essential tool for any facility requiring precise leveling and mobility.
Top product features:
- The product has a 50 mm diameter nylon wheel that allows for easy movement.
- The caster has a 73x73 mm stainless steel plate with a 58x58 mm bolt hole pattern for secure mounting.
- The product features a 10 mm height adjustment capability for accurate level setting.
Top product applications:
- Industrial Equipment Mounts
- Heavy Machinery Leveling Systems
- Medical Equipment Stabilization
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The SGDN Series offers stainless steel leveling casters for harsh environments. A thick SS frame is used to achieve the combination of being both strong and compact. SGDN-60-F-NYN is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. SGDN-60-F-NYN is mounted with a SS 73 mm x 73 mm top plate (58 mm x 58 mm bolt hole pattern) using 4 SS bolts and nuts (INCLUDED).
The swivel section contains 2 sets of SS ball bearings for easy maneuverability, as well as hardened SS bearing raceway sleeves to prevent scouring. All components are completely corrosion resistant, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with a SS axle shaft. And once positioned, the caster provides rear access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The SGDN Series offers stainless steel leveling casters for harsh environments. A thick SS frame is used to achieve the combination of being both strong and compact. SGDN-60-F-NYN is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. SGDN-60-F-NYN is mounted with a SS 73 mm x 73 mm top plate (58 mm x 58 mm bolt hole pattern) using 4 SS bolts and nuts (INCLUDED).
The swivel section contains 2 sets of SS ball bearings for easy maneuverability, as well as hardened SS bearing raceway sleeves to prevent scouring. All components are completely corrosion resistant, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with a SS axle shaft. And once positioned, the caster provides rear access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.86
- Package Width: 4.33
- Package Height: 6.30
- Package Weight: 2.64
Product info last updated on January 29, 2026 10:24am UTC
Category: Casters and Wheels
