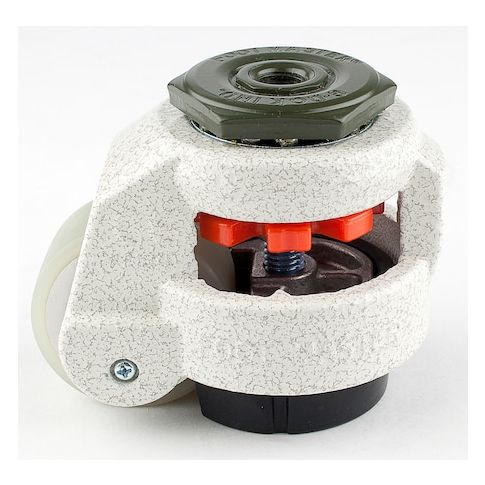

Leveling Caster, 50 mm Polyurethane Wheel, M12x1.75P Stem, Swivel, 280 kg Cap, NBR Foot Pad, Ivory MPN:GD-60-S-HUP
Leveling Caster, 50 mm Polyurethane Wheel, M12x1.75P Stem, Swivel, 280 kg Cap, NBR Foot Pad, Ivory
Elevate your operation with the FOOT MASTER GD-60-S-HUP leveling caster, a game-changing solution for industries that require precision and mobility. This innovative product enables effortless height adjustment, stable positioning, and easy maneuverability, making it perfect for applications such as heavy machinery, equipment, and furniture manufacturing. With a 280 kg capacity and 10 mm of height adjustment, you can achieve perfect level sets even under heavy loads. The durable design and high-performance bearings ensure reliable operation and extended lifespan, reducing downtime and increasing productivity. Upgrade your workflow with the original leveling caster that sets the standard for performance and durability.
Top product features:
- A thick aluminum frame is used to achieve a combination of strength and compactness.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
- A 50 mm diameter wheel is mated with an axle shaft made of cold forged steel for smooth movement.
Top product applications:
- Heavy machinery leveling
- Industrial equipment stabilization
- Medical equipment positioning
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-60-S-HUP is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-60-S-HUP is mounted using a M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-60-S-HUP is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-60-S-HUP is mounted using a M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.86
- Package Width: 4.33
- Package Height: 6.30
- Package Weight: 1.54
Product info last updated on January 30, 2026 11:38pm UTC
Category: Casters and Wheels
