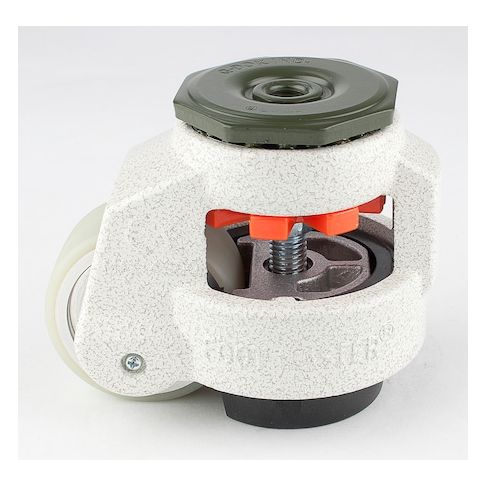

Leveling Caster, 63 mm Polyurethane Wheel, 1/2-13 Stem, Swivel, 550 kg Cap, NBR Foot Pad, Ivory MPN:GD-80-S-HUP-1/2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1877089
Leveling Caster, 63 mm Polyurethane Wheel, 1/2-13 Stem, Swivel, 550 kg Cap, NBR Foot Pad, Ivory
The FOOT MASTER GD-80-S-HUP-1/2 leveling caster is a game-changing solution for industries that require precise leveling and mobility. Ideal for applications such as medical equipment, laboratory furniture, and industrial machinery, this caster combines the stability of a foot pad with the ease of a swivel wheel. With a 550 kg capacity and 15 mm of height adjustment, it ensures accurate leveling even under heavy loads. The durable design and high-performance bearings make it perfect for frequent use, while the compact size and adjustable foot pad make it easy to position and secure.
Top product features:
- The product has a 63 mm diameter polyurethane wheel for smooth mobility.
- The caster has a 1/2-13 threaded set screw for secure mounting.
- The product has up to 15 mm of height adjustment capability for accurate leveling.
Top product applications:
- Industrial equipment maintenance and repair
- Heavy machinery installation and leveling
- High-precision manufacturing and assembly
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-S-HUP-1/2 is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-S-HUP-1/2 is mounted using a 1/2"-13 threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-S-HUP-1/2 is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-S-HUP-1/2 is mounted using a 1/2"-13 threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.42
- Package Width: 4.92
- Package Height: 7.87
- Package Weight: 2.64
Product info last updated on February 1, 2026 10:51am UTC
Category: Casters and Wheels
