Leveling Caster, 63 mm Polyurethane Wheel, 90x90 mm Plate, Swivel, 550 kg Cap, NBR Foot Pad, Black MPN:GD-80-F-HUP-FBL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1876860

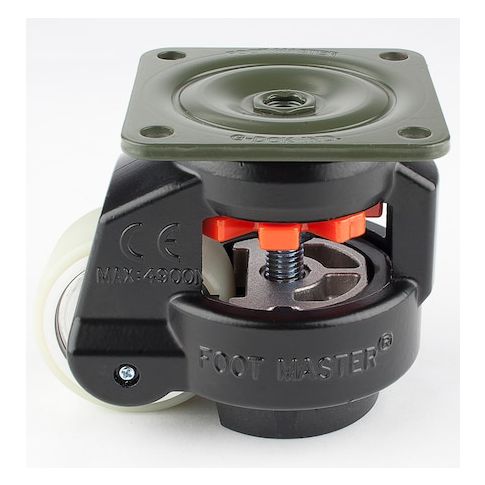

Leveling Caster, 63 mm Polyurethane Wheel, 90x90 mm Plate, Swivel, 550 kg Cap, NBR Foot Pad, Black
The FOOT MASTER GD-80-F-HUP-FBL leveling caster offers unparalleled mobility and adjustability, perfect for applications requiring heavy loads and precise leveling. Its thick aluminum frame and 2 sets of ball bearings ensure smooth swivel and maneuverability, while the 63mm polyurethane wheel and cold forged steel axle provide long-lasting durability. The NBR foot pad allows for side access and easy height adjustment, making it ideal for use in industrial, commercial, and heavy-duty settings. With a 550kg capacity and up to 15mm of height adjustment, this caster is perfect for applications such as machinery, equipment, and heavy furniture, providing a stable and level surface.
Top product features:
- A thick aluminum frame is used to achieve a combination of being both strong and compact.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
- A 63 mm diameter wheel mated with an axle shaft made of cold forged steel allows for easy movement.
Top product applications:
- Heavy machinery and equipment manufacturers use FOOT MASTER leveling casters to stabilize and level their products during movement and when stationary.
- Industrial equipment and machinery installers rely on FOOT MASTER leveling casters to ensure accurate leveling and stability of heavy loads.
- Manufacturers of heavy industrial equipment and machinery use FOOT MASTER leveling casters to provide a stable and level platform for their products, ensuring safe and efficient operation.
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-F-HUP-FBL is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-F-HUP-FBL is mounted with a 90 mm x 90 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-F-HUP-FBL is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-F-HUP-FBL is mounted with a 90 mm x 90 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.42
- Package Width: 4.92
- Package Height: 7.87
- Package Weight: 3.08
Product info last updated on March 26, 2026 9:24am UTC
Category: Casters and Wheels
