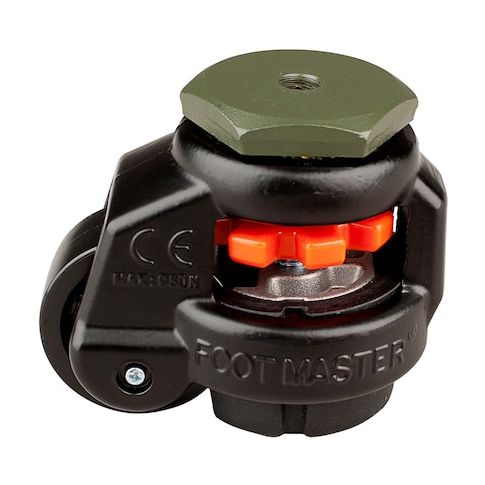

Leveling Caster, 42 mm Nylon Wheel, M8x1.25P Stem, Swivel, 60 kg Cap, NBR Foot Pad, Black MPN:GD-40-S-NYN-FBL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1876818
Leveling Caster, 42 mm Nylon Wheel, M8x1.25P Stem, Swivel, 60 kg Cap, NBR Foot Pad, Black
The FOOT MASTER GD-40-S-NYN-FBL leveling caster is a game-changing solution for applications requiring precision leveling and mobility. Its ingenious design combines a swivel caster, height-adjustable level mount, and stable foot pad, making it perfect for heavy-duty use in industries such as manufacturing, warehousing, and healthcare. With up to 10 mm of height adjustment and a 60 kg capacity, this caster provides accurate leveling even under heavy loads. Its durable construction and smooth wheel movement ensure reliable performance and easy maneuverability, making it an essential tool for maintaining efficient workflows and ensuring precise positioning.
Top product features:
- A thick aluminum frame is used to achieve the combination of being both strong and compact.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
- A 42 mm diameter wheel mated with an axle shaft made of cold forged steel makes moving easy.
Top product applications:
- Industrial equipment, such as machinery and manufacturing tools, can benefit from the use of this leveling caster to ensure stability and accuracy during operation.
- Office furniture, such as desks and workstations, can be equipped with these casters to allow for easy mobility and level adjustment, making it ideal for use in open office spaces.
- Audio and video equipment, such as speakers and monitors, can be mounted on these leveling casters to provide a stable and level surface, reducing the risk of damage and ensuring optimal performance.
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-40-S-NYN-FBL is rated at 60 kg with an overall height of 71 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-40-S-NYN-FBL is mounted using a M8 x 1.25P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 42 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-40-S-NYN-FBL is rated at 60 kg with an overall height of 71 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-40-S-NYN-FBL is mounted using a M8 x 1.25P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 42 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.28
- Package Width: 3.15
- Package Height: 5.12
- Package Weight: 0.88
Product info last updated on January 30, 2026 11:01pm UTC
Category: Casters and Wheels
