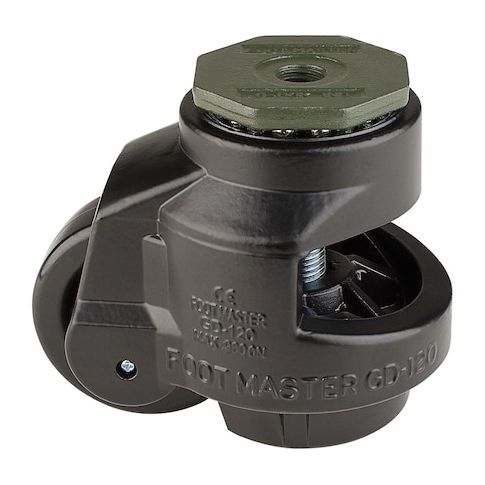

Leveling Caster, 75 mm Nylon Wheel, M16x2.0P Stem, Swivel, 1000 kg Cap, Al Foot Pad, Black MPN:GD-120-S-NYN-FBL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1876538
Leveling Caster, 75 mm Nylon Wheel, M16x2.0P Stem, Swivel, 1000 kg Cap, Al Foot Pad, Black
The FOOT MASTER GD-120-S-NYN-FBL leveling caster is a revolutionary product that combines mobility, adjustability, and stability. Engineered for heavy-duty use, it features a 75mm nylon wheel, swivel section with ball bearings, and a 1000kg capacity. The aluminum frame provides a strong and compact design, while the height adjustment capability allows for accurate leveling. Ideal for use in industrial settings, warehouses, and manufacturing facilities, this caster provides easy maneuverability and dependable reliability. Its versatility and performance make it an essential tool for maintaining a stable and efficient work environment.
Top product features:
- Thick aluminum frame provides a strong and compact design.
- 2 sets of ball bearings in the swivel section enable easy maneuverability.
- 75 mm diameter wheel with cold forged steel axle shaft allows for smooth movement.
Top product applications:
- Industrial Equipment Installation
- Heavy-Duty Manufacturing Lines
- Warehouse and Distribution Centers
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-120-S-NYN-FBL is rated at 1000 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-120-S-NYN-FBL is mounted using a M16 x 2.0P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-120-S-NYN-FBL is rated at 1000 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-120-S-NYN-FBL is mounted using a M16 x 2.0P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.61
- Package Width: 5.91
- Package Height: 8.27
- Package Weight: 4.18
Product info last updated on March 15, 2026 3:24pm UTC
Category: Casters and Wheels
