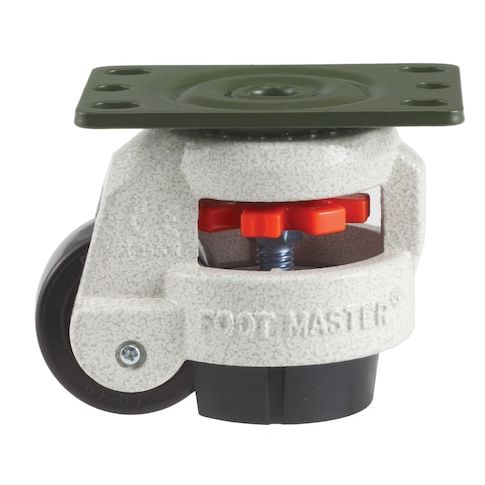

Leveling Caster, 50 mm Nylon Wheel, 2-1/2 x 3-1/4 Plate, Swivel, 280 kg Cap, NBR Foot Pad, Ivory MPN:GD-60-F-NYN-PUS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1876492
Leveling Caster, 50 mm Nylon Wheel, 2-1/2 x 3-1/4 Plate, Swivel, 280 kg Cap, NBR Foot Pad, Ivory
The FOOT MASTER Leveling Caster is a revolutionary product that combines mobility, height adjustability, and stability in one ingenious device. Perfect for applications where precision leveling is critical, this caster is ideal for heavy-duty industries such as manufacturing, warehousing, and logistics. With its 280 kg capacity and up to 10 mm of height adjustment, it provides effortless leveling and stability even under heavy loads. The swivel section and 50 mm diameter wheel ensure smooth maneuverability, while the ABS thermoplastic thumbwheel makes fine adjustments easy. Suitable for a wide range of applications, this leveling caster is a must-have for any industry requiring precision and reliability.
Top product features:
- The product has a thick aluminum frame that achieves a combination of strength and compactness.
- The caster has a 50 mm diameter wheel mated with an axle shaft made of cold forged steel for easy movement.
- The product contains 2 sets of ball bearings in the swivel section for easy maneuverability.
Top product applications:
- Industrial Equipment Installation
- Heavy Duty Manufacturing
- Warehouse and Distribution Centers
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-60-F-NYN-PUS is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-60-F-NYN-PUS is mounted using a 2-1/2" x 3-3/4" top plate with a 1-3/4" x (2-13/16" to 3-1/16") SLOTTED bolt hole pattern using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-60-F-NYN-PUS is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-60-F-NYN-PUS is mounted using a 2-1/2" x 3-3/4" top plate with a 1-3/4" x (2-13/16" to 3-1/16") SLOTTED bolt hole pattern using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.86
- Package Width: 4.33
- Package Height: 6.30
- Package Weight: 1.76
Product info last updated on January 31, 2026 8:28am UTC
Category: Casters and Wheels
