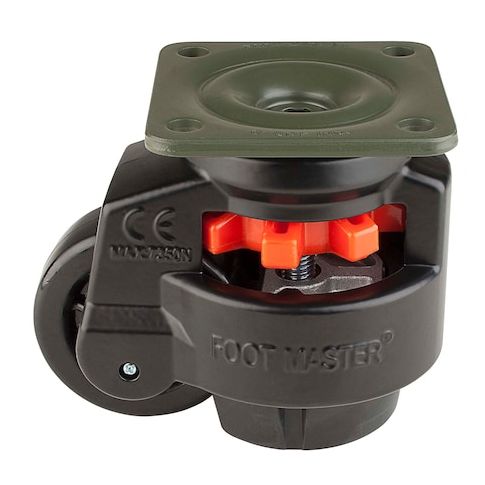

Leveling Caster, 75 mm Nylon Wheel, 95x95 mm Plate, Swivel, 800 kg Cap, NBR Foot Pad, Black MPN:GD-100-F-NYN-FBL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1876212
Leveling Caster, 75 mm Nylon Wheel, 95x95 mm Plate, Swivel, 800 kg Cap, NBR Foot Pad, Black
Elevate your workflow with the FOOT MASTER GD-100-F-NYN-FBL leveling caster, a game-changing solution that combines mobility, adjustability, and stability. Perfect for manufacturing, warehousing, and logistics operations, this rugged caster features a 75mm nylon wheel, 95x95mm plate, and 800kg capacity. Its swivel section and hardened steel bearing raceway sleeves ensure smooth maneuverability, while the ABS thermoplastic thumbwheel allows for precise level adjustments. Ideal for heavy loads, this caster provides side access and can be easily raised and lowered to restore mobility. With its compact design and durable construction, it's the ultimate tool for achieving perfect level sets and efficient workflow.
Top product features:
- The product has a 75 mm diameter nylon wheel for easy movement.
- The caster has up to 12 mm of height adjustment capability for accurate leveling.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
Top product applications:
- Heavy machinery leveling and stabilization
- Industrial equipment leveling and adjustment
- Medical equipment and hospital cart stabilization
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-100-F-NYN-FBL is rated at 800 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-100-F-NYN-FBL is mounted with a 95 mm x 95 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-100-F-NYN-FBL is rated at 800 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-100-F-NYN-FBL is mounted with a 95 mm x 95 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.61
- Package Width: 5.91
- Package Height: 8.27
- Package Weight: 4.18
Product info last updated on February 17, 2026 1:42am UTC
Category: Casters and Wheels
