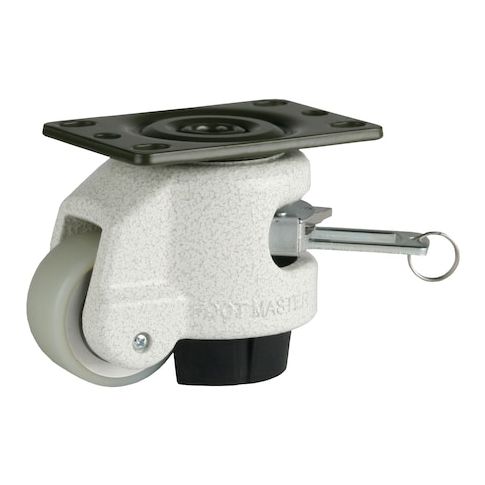

Leveling Caster, Ratchet, 50 mm PU Wheel, 2-1/2 x 3-1/4 Plate, Swivel, 250 kg Cap, NBR Pad, Ivory MPN:GDR-60-F-HUP-PUS
Free Shipping
In Stock
Elevate your industrial operations with the Foot Master Leveling Caster, a reliable and versatile solution for heavy-duty applications. With a 250kg capacity and 50mm PU wheel, this caster provides smooth swivel movement and excellent load-bearing performance. The ratchet design allows for effortless height adjustment, while the NBR pad ensures quiet and durable operation. Suitable for use in warehouses, factories, and other high-traffic areas, this caster is ideal for applications such as machinery installation, equipment relocation, and material handling. Its compact 2.5 x 3.25 plate design makes it easy to install and maneuver, minimizing downtime and increasing productivity.
Top product features:
- 50 mm PU Wheel provides a stable and durable rolling surface
- Swivel functionality allows for easy maneuverability and direction change
- NBR Pad ensures secure and controlled movement on various surfaces
Top product applications:
- Industrial equipment
- Food processing machinery
- Heavy manufacturing plants
The GDR Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GDR-60-F-HUP-PUS is rated at 250 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GDR-60-F-HUP-PUS is mounted using a 2-1/2" x 3-3/4" top plate with a 1-3/4" x (2-13/16" to 3-1/16") SLOTTED bolt hole pattern using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides rear access to a retractable ratchet handle used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the adjustments to achieve the perfect level set is fast and efficient using the integrated ratcheting system. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.86
- Package Width: 4.33
- Package Height: 6.30
- Package Weight: 1.76
