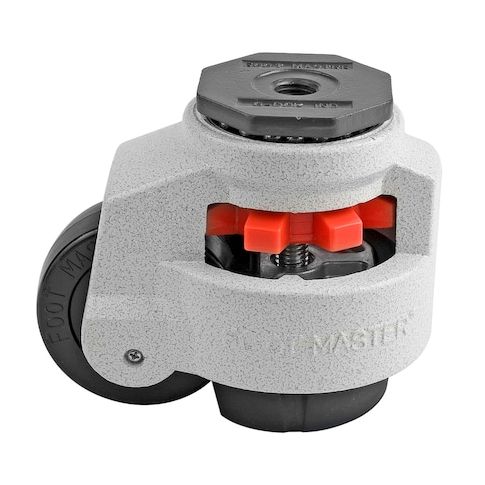

Leveling Caster, 75 mm Nylon Wheel, M16x2.0P Stem, Swivel, 800 kg Cap, NBR Foot Pad, Ivory MPN:GD-100-S-NYN
Leveling Caster, 75 mm Nylon Wheel, M16x2.0P Stem, Swivel, 800 kg Cap, NBR Foot Pad, Ivory
Elevate your workflow with the FOOT MASTER GD-100-S-NYN leveling caster, a revolutionary product that combines mobility, adjustability, and stability. Perfect for heavy-duty applications, this caster can support loads up to 800 kg and features a 120 mm overall height with 12 mm of height adjustment capability. The swivel section with ball bearings ensures easy maneuverability, while the 75 mm diameter nylon wheel and cold forged steel axle shaft provide smooth movement. Ideal for use in manufacturing, warehousing, and logistics, this caster enables you to fine-tune your workspace for optimal performance and productivity, making it an essential tool for any heavy-duty operation.
Top product features:
- The product has a 75 mm diameter nylon wheel for easy mobility.
- The leveling caster has up to 12 mm of height adjustment capability for accurate level setting.
- The product contains 2 sets of ball bearings in the swivel section for easy maneuverability.
Top product applications:
- Industrial Equipment Maintenance
- Laboratory Equipment Installation
- Heavy Machinery Installation and Maintenance
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-100-S-NYN is rated at 800 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-100-S-NYN is mounted using a M16 x 2.0P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-100-S-NYN is rated at 800 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-100-S-NYN is mounted using a M16 x 2.0P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.61
- Package Width: 5.91
- Package Height: 8.27
- Package Weight: 3.52
Product info last updated on February 11, 2026 5:15am UTC
Category: Casters and Wheels
