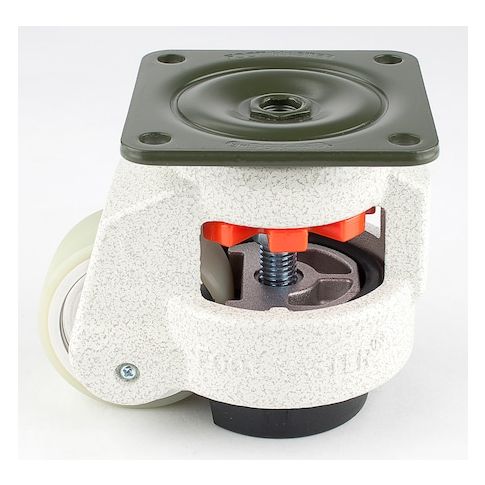

Leveling Caster, 63 mm Polyurethane Wheel, 90x90 mm Plate, Swivel, 550 kg Cap, NBR Foot Pad, Ivory MPN:GD-80-F-HUP
Leveling Caster, 63 mm Polyurethane Wheel, 90x90 mm Plate, Swivel, 550 kg Cap, NBR Foot Pad, Ivory
Elevate your equipment's mobility and stability with the FOOT MASTER GD-80-F-HUP leveling caster. This innovative product combines the flexibility of a caster with the precision of a level mount, making it ideal for heavy-duty applications such as manufacturing, warehousing, and construction. With a 550 kg capacity and 15 mm of height adjustment, you can easily level your equipment on uneven surfaces. The swivel section and 63 mm polyurethane wheel ensure smooth movement and durability, while the ABS thumbwheel allows for precise fine-tuning. Perfect for industries requiring high performance and reliability, this leveling caster is a game-changer for any operation.
Top product features:
- A thick aluminum frame is used to achieve the combination of being both strong and compact.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
- A 63 mm diameter wheel mated with an axle shaft made of cold forged steel allows for easy movement.
Top product applications:
- Heavy-Duty Industrial Equipment
- Adjustable Workstations and Laboratories
- Mobile Medical Equipment and Hospital Furniture
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-F-HUP is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-F-HUP is mounted with a 90 mm x 90 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-F-HUP is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-F-HUP is mounted with a 90 mm x 90 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.42
- Package Width: 4.92
- Package Height: 7.87
- Package Weight: 3.08
Product info last updated on February 11, 2026 9:25am UTC
Category: Casters and Wheels
