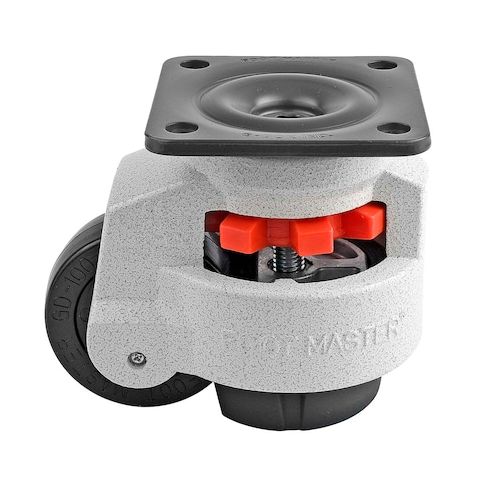

Leveling Caster, 75 mm Nylon Wheel, 95x95 mm Plate, Swivel, 800 kg Cap, NBR Foot Pad, Ivory MPN:GD-100-F-NYN
Leveling Caster, 75 mm Nylon Wheel, 95x95 mm Plate, Swivel, 800 kg Cap, NBR Foot Pad, Ivory
The FOOT MASTER GD-100-F-NYN leveling caster provides effortless mobility and precise leveling in a single, compact unit. Ideal for use in manufacturing, warehousing, and heavy-duty applications, this caster offers 800 kg capacity and up to 12 mm of height adjustment. The swivel section features ball bearings for smooth maneuverability, while the 75 mm nylon wheel and cold-forged steel axle ensure reliable performance. The NBR foot pad provides stability and side access to the ABS thumbwheel, making it easy to achieve a perfect level set, even under heavy loads. Perfect for heavy-duty applications, this caster provides unparalleled convenience and reliability.
Top product features:
- A thick aluminum frame is used to achieve a combination of being both strong and compact.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
- A 75 mm diameter wheel mated with an axle shaft made of cold forged steel allows for easy movement.
Top product applications:
- Industrial Equipment Manufacturing
- Heavy-Duty Furniture Production
- Warehouse and Distribution Center Operations
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-100-F-NYN is rated at 800 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-100-F-NYN is mounted with a 95 mm x 95 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-100-F-NYN is rated at 800 kg with an overall height of 120 mm. Up to 12 mm of height adjustment capability is available for an accurate level set. GD-100-F-NYN is mounted with a 95 mm x 95 mm top plate (70 mm x 70 mm bolt hole pattern) using 4 bolts and nuts (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 75 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.61
- Package Width: 5.91
- Package Height: 8.27
- Package Weight: 4.18
Product info last updated on February 1, 2026 2:03am UTC
Category: Casters and Wheels
