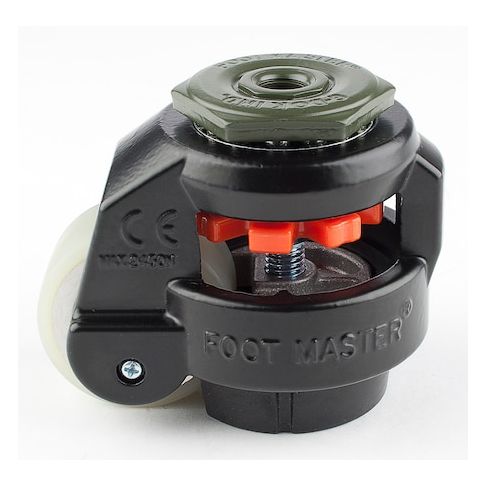

Leveling Caster, 50 mm Polyurethane Wheel, M12x1.75P Stem, Swivel, 280 kg Cap, NBR Foot Pad, Black MPN:GD-60-S-HUP-FBL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1875740
Leveling Caster, 50 mm Polyurethane Wheel, M12x1.75P Stem, Swivel, 280 kg Cap, NBR Foot Pad, Black
Elevate your work with the FOOT MASTER GD-60-S-HUP-FBL Leveling Caster, engineered for performance and durability. This innovative product combines mobility, height adjustability, and stability, making it ideal for heavy-duty applications in industries such as manufacturing, warehousing, and construction. With a 280 kg capacity and 10 mm of height adjustment, you can achieve precise level settings even under heavy loads. The swivel section features ball bearings for smooth maneuverability, and the 50 mm polyurethane wheel ensures easy movement. Perfect for applications where precision and reliability are crucial, this leveling caster provides a stable and stationary platform for equipment and machinery.
Top product features:
- A thick aluminum frame is used to achieve a combination of being both strong and compact.
- The swivel section contains 2 sets of ball bearings for easy maneuverability.
- A 50 mm diameter wheel mated with an axle shaft made of cold forged steel enables easy movement.
Top product applications:
- Industrial Machinery
- Office Furniture
- Medical Equipment
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-60-S-HUP-FBL is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-60-S-HUP-FBL is mounted using a M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-60-S-HUP-FBL is rated at 280 kg with an overall height of 82 mm. Up to 10 mm of height adjustment capability is available for an accurate level set. GD-60-S-HUP-FBL is mounted using a M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 50 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.86
- Package Width: 4.33
- Package Height: 6.30
- Package Weight: 1.54
Product info last updated on February 4, 2026 12:41am UTC
Category: Casters and Wheels
