Leveling Caster, 63 mm Nylon Wheel, M12x1.75P Stem, Swivel, 550 kg Cap, NBR Foot Pad, Black MPN:GD-80-S-NYN-FBL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1875731

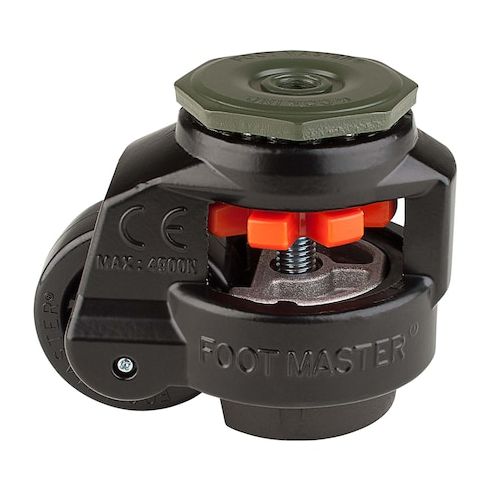

Leveling Caster, 63 mm Nylon Wheel, M12x1.75P Stem, Swivel, 550 kg Cap, NBR Foot Pad, Black
The FOOT MASTER Leveling Caster is a revolutionary product that combines mobility, adjustability, and stability in one innovative solution. Ideal for use in heavy-duty industrial applications, it allows for easy maneuverability and precise leveling, even under heavy loads. With its thick aluminum frame, hardened steel bearing raceway sleeves, and cold forged steel axle shaft, this caster provides high performance and dependable reliability. Perfect for use in manufacturing, warehousing, and logistics, it enables smooth movement and precise positioning, making it an essential tool for any industry that requires heavy-duty mobility and stability.
Top product features:
- The product has a 63 mm diameter wheel for easy mobility.
- The caster has a swivel section with 2 sets of ball bearings for easy maneuverability.
- The foot pad has up to 15 mm of height adjustment capability for accurate level setting.
Top product applications:
- Manufacturing and production facilities
- Heavy equipment and machinery
- Warehouse and storage systems
FOOT MASTER engineers invented the ORIGINAL leveling caster in 1989, setting the standard for performance and durability. This ingenious product combines the mobility of a caster, the height adjustability of a level mount, and the stability of a foot pad.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-S-NYN-FBL is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-S-NYN-FBL is mounted using a M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
The GD Series leveling caster profile is integral to its function. A thick aluminum frame is used to achieve the combination of being both strong and compact. GD-80-S-NYN-FBL is rated at 550 kg with an overall height of 103 mm. Up to 15 mm of height adjustment capability is available for an accurate level set. GD-80-S-NYN-FBL is mounted using a M12 x 1.75P threaded set screw (INCLUDED).
The swivel section contains 2 sets of ball bearings for easy maneuverability. Bearing raceway sleeves made from hardened steel prevent scouring to the aluminum frame, leading to high performance and dependable reliability.
Moving is easy thanks to a 63 mm diameter wheel mated with an axle shaft made of cold forged steel. And once positioned, the caster provides side access to an ABS thermoplastic thumbwheel used to lower the foot pad. As the wheel is lifted off the ground, the foot pad takes over to make the application completely stationary.
Making the fine adjustments to achieve the perfect level set, even under heavy loads, is light work for this world renowned leveling caster. When it is time to move again, simply raise the foot pad to restore the freedom of mobility.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.42
- Package Width: 4.92
- Package Height: 7.87
- Package Weight: 2.64
Product info last updated on January 31, 2026 11:15pm UTC
Category: Casters and Wheels
