CableAnalyzer DSX2-5000 Cable Tester, Copper Cable Certification, Touchscreen, Wi-Fi MPN:DSX2-5000
Free Shipping
In Stock
The Fluke Cable Tester with Touch Screen Display is a comprehensive tool for certifying and testing high-speed data cables. Its advanced features include endpoint testing, wire mapping, and adapter support for CAT6A/Class EA channels and permanent links. With a maximum speed measurement of 40 Gbps, this tester ensures data integrity and safety. Ideal for data center technicians, network administrators, and IT professionals, it simplifies the testing process and reduces errors. The device comes with a carrying case, hand straps, and other accessories, making it a valuable addition to any network infrastructure team. Its integrated Wi-Fi and USB interface enable seamless data transfer and analysis.
Top product features:
- Touch Screen Display
- Wire Mapping
- Integrated Wi-Fi
Top product applications:
- Cable certification
- Endpoint testing
- Wire mapping
The FLUKE NETWORKS DSX2-5000 is a copper cable qualification and certification tester for network cabling. It supports cable certification, wire mapping, endpoint testing, cable length display, distance to fault, crosstalk detection, impedance detection, pair tracing, and PoE/PoE+ detection. The unit is designed for testing shielded and unshielded LAN cabling, including CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, and CAT8, with RJ45 connectivity and support for TIA Category 3, 4, 5, 5e, 6, 6A, and 8 per ANSI/TIA-568.2-D.
Key Features of the FLUKE NETWORKS DSX2-5000 Cable Tester:
- Touchscreen display: 5.7 in LCD with projected capacitance touchscreen for on-unit viewing and operation.
- Cable certification: Performs certification testing and supports ISO/IEC Class C, D, E, EA, F, FA and I/II, as well as ANSI/TIA-568.2-D standards.
- Compatible cable types: Tests CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, and CAT8 cabling.
- Included adapters: Comes with CAT6A/Class EA Channel and CAT6A/Class EA Permanent Link adapters.
- Measurement capabilities: Supports wire map, length, propagation delay, delay skew, DC loop resistance, return loss, insertion loss, NEXT, FEXT, ACR-N, ACR-F, Power Sum NEXT, Power Sum ACR-N, Power Sum ACR-F, and additional crosstalk-related parameters.
- Fault detection: Detects opens, shorts, continuity, crosstalk, impedance, and distance to fault.
- Range and resolution: Maximum cable length 2,600 ft with resolution of 0.1 m or 1 ft, 0.1 ohm, and 1 ns.
- Data storage and connectivity: Stores up to 12,000 results and includes integrated Wi-Fi meeting IEEE 802.11 a/b/g/n on 2.4 GHz and 5 GHz bands.
- Power: Uses a 7.2 V lithium-ion battery pack with typical battery life of 8 hours
- charge time is 4 hours from 10% to 90% with tester off.

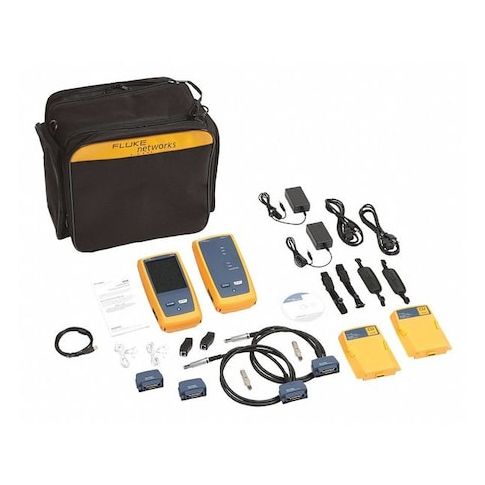

- Included components: Includes Versiv mainframe and remote, (2) DSX-5000 CableAnalyzer modules, (2) AC chargers, carrying case, USB interface cable, universal couplers, hand straps, shoulder straps, and headsets.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 15.70
- Package Height: 11.50
- Package Weight: 12.40
