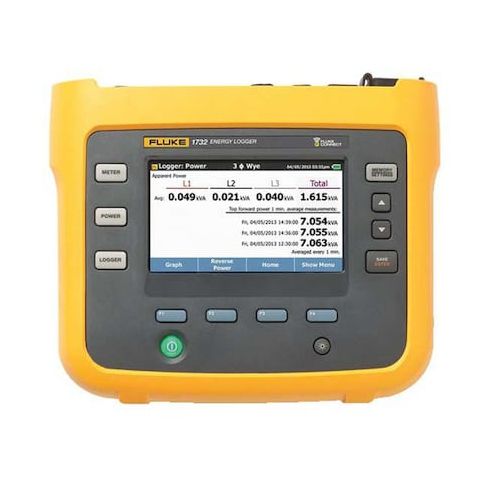

Power Quality Analyzer, 1732 Series, 3-Phase Energy Logger, 5 Current/4 Voltage Channels MPN:FLUKE-1732/EUS
Free Shipping
In Stock
The Fluke Power Quality Analyzer is a powerful tool for monitoring and analyzing power quality in a variety of applications, including industrial, commercial, and residential settings. With its 480 x 272 display, users can easily view detailed data on voltage, current, and power factor in real-time. The analyzer's energy logging capabilities and Fluke Connect integration allow for remote monitoring and data analysis, making it ideal for applications such as power system design, troubleshooting, and energy management. Its accuracy and versatility make it a valuable asset for anyone working with electrical systems.
Top product features:
- Current Channels 5, For Phase Single, Three, or Split
- Maximum AC Current Measured 1,500 A
- Peak Capture Yes
Top product applications:
- Industrial Process Monitoring
- Power Grid Analysis
- Research and Development
The FLUKE FLUKE-1732/EUS is a power quality analyzer and energy logger for measuring electrical parameters on single-phase, split-phase, and three-phase systems. It supports data logging and peak capture, and can be used to monitor power, current, voltage, power factor, and harmonic content in electrical systems. A color LCD touch screen with 480 x 272 resolution provides on-instrument viewing, while Bluetooth, USB-A, USB-Mini, and Wi-Fi connectivity support data access and communication.
Key Features of the FLUKE FLUKE-1732/EUS Power Quality Analyzer:
- Display: Color LCD touch screen with 480 x 272 resolution for viewing measurements and logged data.
- Phase Compatibility: Supports single, split, and three-phase systems.
- Channel Count: 5 current channels and 4 voltage channels for multi-point electrical measurement.
- Data Logging: Records measurement data for analysis over time.
- Measurement Capacity: Measures up to 1,000 V AC/DC, up to 1,000 A AC/DC, and maximum AC current measured of 1,500 A.
- Accuracy: Current accuracy of +/-0.1% and voltage accuracy of +/-10%.
- Harmonics and Sampling: Captures harmonics through the 50th order with a 1 MHz, 256 sec/cycle sampling rate.
- Power Measurements: Power factor range of -1 to 1, maximum apparent power of 1,000 TVA, and maximum power of 1.56 GW.
- Connectivity: Bluetooth, USB-A, USB-Mini, and Wi-Fi communication protocols.
- Storage: 2 GB internal storage for logged data.
- Transient and Peak Capture: Peak capture included with 200 nS minimum transient duration.
- Operating Range and Rating: Operates from 14 to 122 degrees F, rated IP50, CAT III 1000V, CAT IV 600V.
- Included: Energy Logger with Fluke Connect.
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 11.80
- Package Height: 9.60
- Package Weight: 9.80
