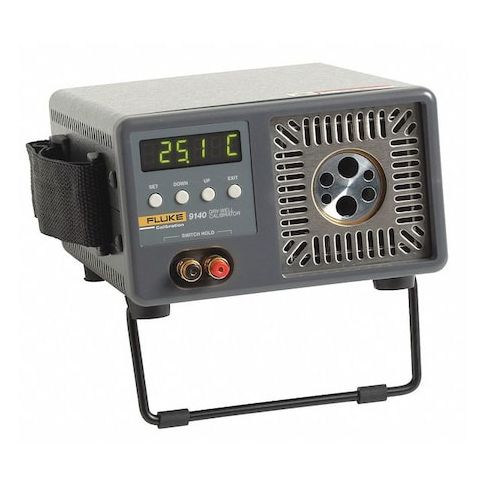

Drywell Temperature Calibrator, 9140 Series, Field Dry-Well, 95 to 662 Degrees F, Single Well MPN:9140-A-156
Free Shipping
In Stock
The Fluke 9140 Drywall Temperature Calibrator is a versatile and reliable tool for precise temperature calibration in the field. Its compact design and rugged construction make it ideal for use in harsh environments. With a temperature range of 35°C to 350°C and 95°F to 662°F, this calibrator meets the needs of a wide range of industries, including HVAC, automotive, and manufacturing. Its variable number of set points and RS-232 interface enable seamless integration with existing calibration systems. Perfect for calibration technicians and engineers, the 9140 provides accurate and repeatable results, ensuring compliance with industry standards and regulations.
Top product features:
- Temperature calibration range: 35 Degrees to 350 Degrees C
- Temperature calibration set points: 35 Degrees C, 350 Degrees C, and multiple intermediate points
- Calibration interface: RS-232
Top product applications:
- Temperature calibration in laboratories and research facilities
- Drywall temperature calibration in construction and building inspection
- Industrial temperature calibration for manufacturing and quality control
The FLUKE 9140-A-156 is a field dry-well temperature calibrator used for checking and calibrating temperature probes and thermometers across a range of 35 Degrees C to 350 Degrees C (95 Degrees F to 662 Degrees F). Designed for high-volume field applications, it features a single well with adjustable set points, LED display, and RS-232 interface for communication and software use. Its compact size and 6 lb weight support portability for on-site temperature calibration work.
Key Features of the FLUKE 9140-A-156 Drywell:
- Temperature Range: Operates from 35 Degrees C to 350 Degrees C (95 Degrees F to 662 Degrees F) for a broad range of calibration points.
- Accuracy: Rated at +/-0.5 Degrees C, with calibrator accuracy of +/-0.25 Degrees C and +/-1 Degrees C for holes greater than 1/4 in.
- Stability and Uniformity: Stability is +/-0.03 Degrees C at 50 Degrees C and +/-0.05 Degrees C at 350 Degrees C, with typical uniformity of +/-0.1 Degrees C.
- Display and Resolution: LED display with 0.1 Degrees resolution for temperature reading and set point visibility.
- Probe Sizes: Supports stem diameters of 1/16 in, 1/8 in, 3/16 in, 1/4 in, 3/8 in, and 1/2 in.
- Heating and Cooling Times: Typical heating time is 12 minutes from ambient to 350 Degrees C
- typical cooling time is 15 minutes from 350 Degrees C to 100 Degrees C.
- Stabilization Time: Reaches stabilization in 7 minutes.
- Included Items: Supplied with the 9140 dry-well, insert for the ordered configuration, power cord, insert removal tool, 9930 Interface-it software, serial cable, and user's guide.
- Calibration Documentation: Includes a NIST traceable calibration certificate with data at 50 Degrees C, 100 Degrees C, 150 Degrees C, 200 Degrees C, 250 Degrees C, 300 Degrees C, and 350 Degrees C.
- Size and Power: Measures 3 3/8 in H x 6 in W x 7 3/4 in D and operates on 115V AC or 230V AC.
- Standards: CE, ROHS, and WEEE.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.17
- Package Width: 12.99
- Package Height: 9.84
- Package Weight: 12.12
